LC Duplexers

Product Features:

Low Frequency: 300KHz ~ 3GHz

Wide bandwidth & high rejection

Flexible frequency

Low price & customization

Power range: 1W ~ 20W

application area

PCS , DCS, CDMA, GSM

Wireless LAN

Cable TV

IF filtering

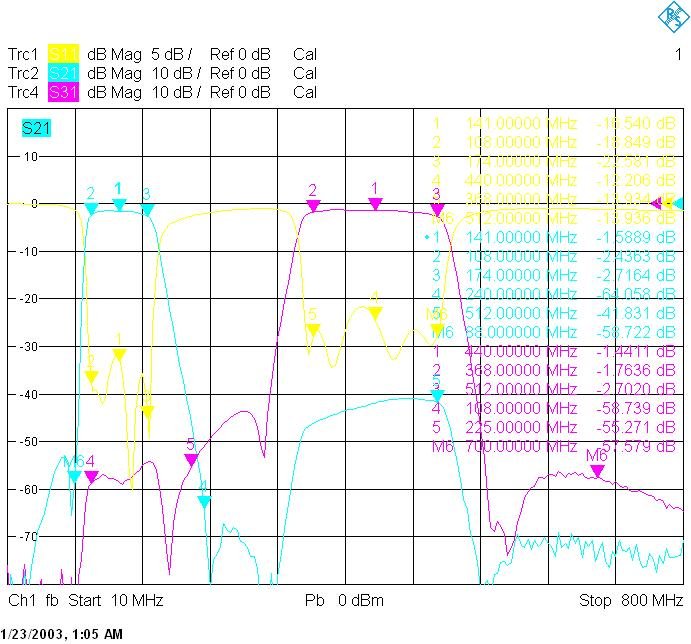

Classical curve

Typical curves of the LD-Series

Model	Center Frequency (MHz)	Band Width (MHz)	InsertionLoss(dB)	Ripple in BW	Reflection R/L	Attenuation	Interface Method	Size（WLH)	Form
LD100-130C11N00-20PA	100-130	00	3.0	2.0	1.5	45dB@120~140 45dB@150~250	SMT	35.025.07.0	Band Pass
		20	3.0	2.0	1.5	50dB@DC~100 50dB@165~250
LD141-440C9N66-144PA	141-440	66	3.0	1.5	1.6	45dB@368~512	SMT	30.020.08.0	Band Pass
		144	3.0	1.5	1.6	45dB@108~174
LD355-690C4-10HA	355-690	4	1.3	0.6	1.5	50dBc@690~930	SMT	58.023.510.0	Band Pass
		10	1.3	0.6	1.5	50dBc@930~1560
LD450-1250-C9HA	450-1250	300	1.0	1.0	1.6	45dB@1000~1500	SMT	47.018.010.0	Band Pass
		500	1.0	1.0	1.6	45dB@300~600
LD829-2105C10R262-790PA	829-2105	262	1.0	0.5	1.5	30dB@1710~2500	SMT	39.69.05.3	Band Pass
		790	1.0	0.5	14	40dB@698~960
LD2200-850C10R1000-300PA	850-2200	1000	1.0	0.5	1.5	50dB@1700~2700	SMT	39.69.05.3	Band Pass
		300	1.0	0.5	1.5	50dB@700~1000
LE54-209C9N48-182PA	54-209	48	1.5	1.5	1.3	30dB@88~108	SMT	20.015.06.0	Band Stop
		182	1.5	1.5	1.3
