LD100-130C11N00-20PA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

100-130

MHz

Band Width

00

20

MHz

Insertion Loss

3.03.0

dB

Ripple in BW

2.0
2.0

dB

VSWR in BW

1.51.5

Attenuation

45dB@120~140

45dB@150~25

50dB@DC~100

50dB@165~250

dB

Interface Method

SMT


Size(W*L*H)

35.0*25.0*7.0

mm

Form

Band Pass

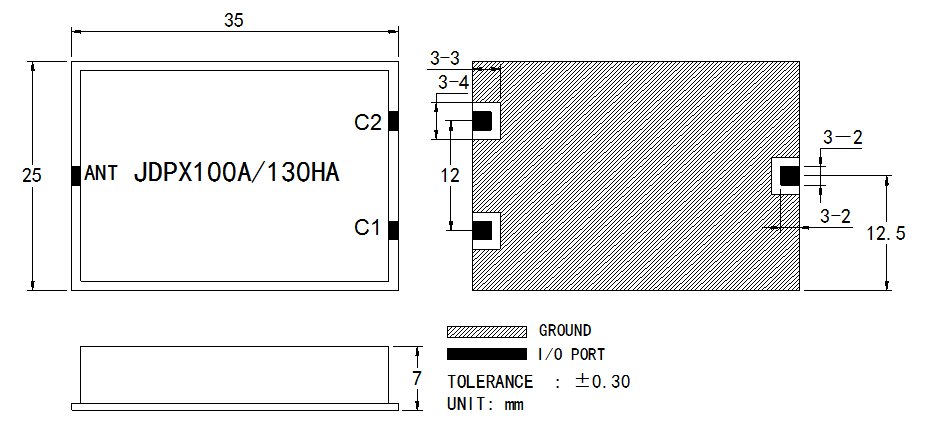

Mechanical Specification
