Ceramic Dielectric Waveguide Filter

High Power (150W max.)

Frequency Range: 400MHz~7 GHz

Low Insertion Loss

High Rejection

Substitute Cavity Filter

Based On Ceramic Dielectric Material Technology

Customer-Specific

application area

Base Stations & Repeaters

Satellite & Communication Systems

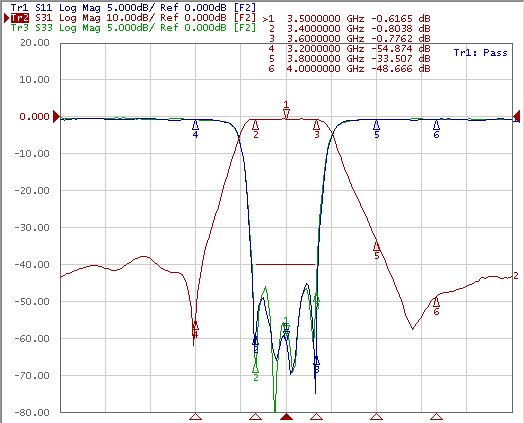

Classical curve

Typical curves of the W.B-Series

Rich Power Product Name	Center Frequency (MHZ)	Band Width (MHZ)	I / L	R / P	VSWR	Att	WLH	Form
WB7350-400F4PA	7350	400	2.0	/	1.30	40dB@1000~6000 40dB@8350~9500 35dB@9500~14000	219.54.95	Band Pass
WB3525-350F6PA	3525	350	1.5	/	1.38	50dB@10~2690 35dB@2690~3100 50dB@7100~7400 40dB@10650~11100	2619.56.2	Band Pass
WB2355-10F4PA	2355	10	3.0	/	1.43	35dB@1660~1780 35dB@1850~1915 35dB@3300~3700	40307.3	Band Pass
WB1975-90F5PA	1975	90	1.5	/	1.38	35dB@1660~1780 35dB@1850~1915 35dB@3300~3700	40308.3	Band Pass
