2.Ceramic Dielectric Duplexers

Ceramic Dielectric Duplexers

Product Features:

Low loss using high Q dielectric resonators

Small package size using high r ceramic material

Good out-of-band rejection and harmonic performance

Excellent shielding and low impact from external environment

Excellent temperature stability

Frequency range: 400MHz~6000MHz

Power range: 5W~50W

application area

Base station & Repeater

Private network market

Beidou, Antenna system

Classical curve

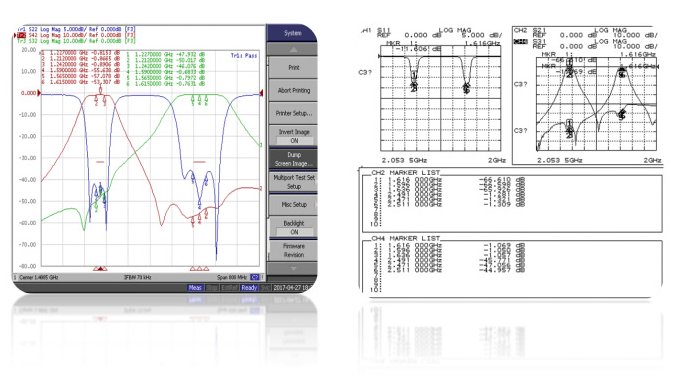

Typical curves of the MD-Series

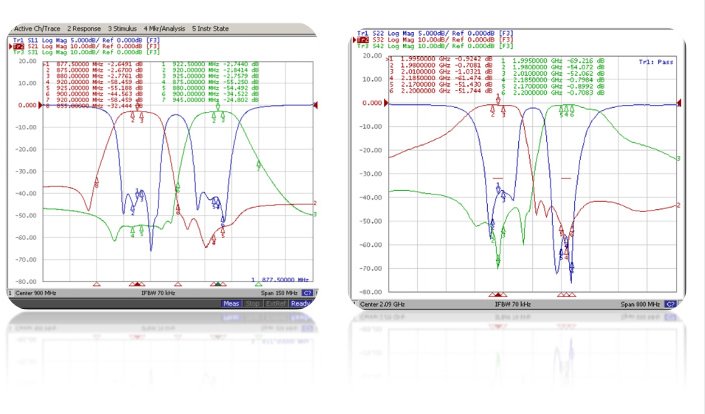

Typical curves of the AD-Series

Model	Frequency Range(MHz)	Band Width(MHz)	Insertion Loss(dB)	Ripple in BW	VSWR in BW	Attenuation	Interface Method	Size（WLH)	Form
MD1950-2140F10N60PA	1950-2140	60	2	0.5	1.3	55dB@2110~2170	SMT	30.08.85.5	Band Pass
						40dB@2045~
		60	2	0.5	1.3	55dB@1920~2180
						25dB@2045~
MD908-953F10N15PA	908-953	15	3	1	1.4	40dB@946~961	SMT	30.011.05.2	Band Pass
		15	3	1	1.4	40dB@901~916
MD1795-2045N10N170-250PB	1795-2045	170	2	1.2	1.9	48dB@1920~2170	SMT	43.513.09.5	Band Pass
		250	2	1.2	1.9	48dB@1710~1880
MD1206-1268K10N20CA	1206-1268	20	1	0.5	1.5	30dB@1258~1278	SMT	31.010.66.0	Band Pass
		20	1	0.5	1.5	30dB@1197~1217
MD2132-1732F10N45PB	2132-1732	45	2.5	1	1.4	50dB@2110~2155	SMT	30.012.85.5	Band Pass
		45	2.5	1	1.4	50dB@1710~1755
MD707-737F10N18PA	707-737	18	5.4	3.4	1.4	55dB@728~746	SMT	30.014.05.5	Band Pass
						24dB@722~
		18	5.1	3.1	1.4	50dB@698~716
						30dB@722~
AE222-697K6N343-307HA	222	343.5	2	/	1.5	20dB@455.25~527.25	SMA	47.030.011.0	Band Stop
	697	307.5	2	/	1.5
MD1747-1842F8N75-70PA	1747-1842	75	3.5	2.2	1.5	50dB@1810~1880	SMT	22.012.05.5	Band Pass
MD1842-1747F8N70-75PA	1842-1747	70	3.5	2.2	1.5	50dB@1710~1785	SMT	22.012.05.5	Band Pass
		65	3.5	2.2	1.5	50dB@1810~1881
		60	3.5	2	1.5	50dB@1710~1786
MD751-781F10N11PA	751-781	11	4.5	3	1.3	50dB@746~757	SMT	30.012.85.5	Band Pass
						25dB@766.5~746
						TBD@1850~1990
		11	4.5	3	1.3	50dB@776~787
						25dB@787~766.5
						TBD@1850~1990
MD781-751F10N11PA	781-751	11	4.5	3	1.3	50dB@746~757	SMT	30.012.85.5	Band Pass
						25dB@766.5~746
						TBD@1850~1990
		11	4.5	3	1.3	50dB@776~787
						25dB@787~766.5
						TBD@1850~1990
