MD707-737F10N18PA

share:
Electrical Specification
ItemSpecUnit
Center Frequency707-737MHz
Band Width1818MHz
Insertion Loss5.45.1dB
Ripple in BW3.43.1dB
VSWR in BW1.41.4
Attenuation

55dB@728~746

 24dB@722~

50dB@698~716

 30dB@722~

dB
Interface MethodSMT
Size(W*L*H)30.0*14.0*5.5mm
FormBand Pass

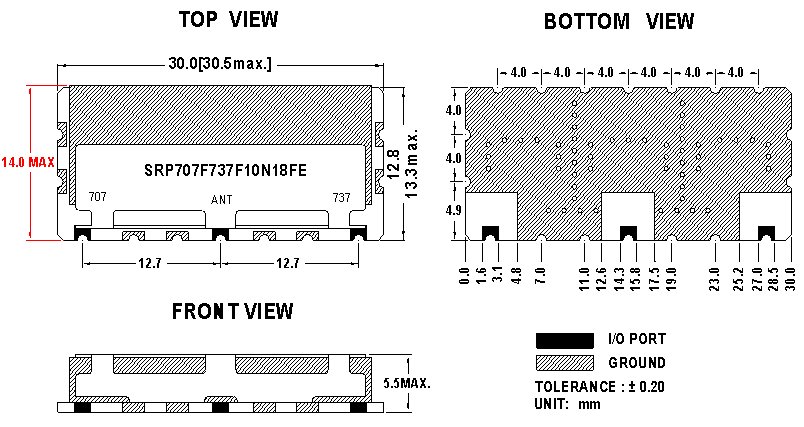

Mechanical Specification

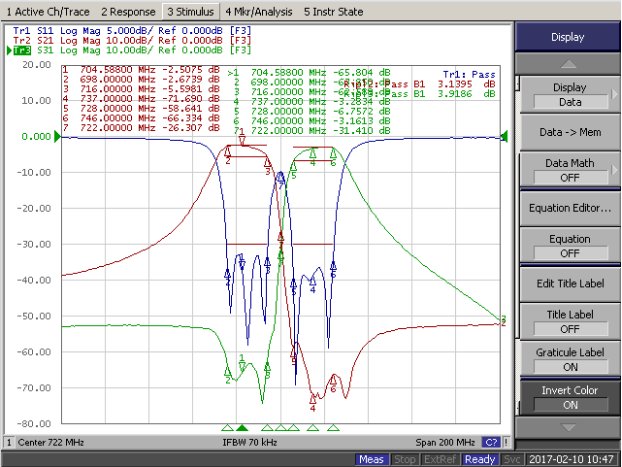

Plot Data
