Ceramic Dielectric Filter

Product Features:

Low Loss Using High Q Dielectric Resonator

Smaller Size And Lighter Weight Using High r Ceramic Materials

Excellent Temperature Stability

Suitable For Surface Mount

Frequency Range: 350MHz~6000MHz

Power Range: 1W~10W

share:
Inquire Now
application area

Base Station & Repeater

LTE, PCS system

TRS, MMDS system

Phased Array

BeiDou GPS

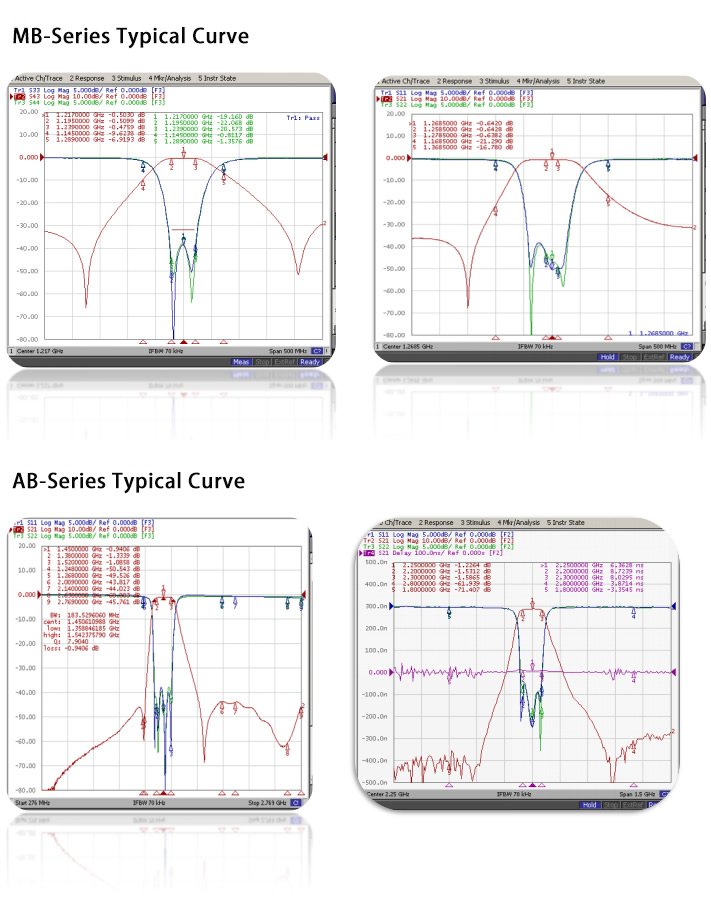

Classical curve

Rich Power Product Name Center Frequency
(MHZ)		 Band Width
(MHZ)		 I / L R / P VSWR Att Interface Method W*L*H Form
AE3800-2000F2HA 3800 2000 1.0 / 1.8 35dBc@4998~5002 SMT 18.0*12.0*7.0 Band Pass
AE3800-1000F2HA 3800 1000 1.0 / 1.8 35dBc@4448~4452 SMT 18.0*12.0*7.0 Band Pass
MB2489-11K4PA 2489 11 1.5 1.0 1.4 30dB@2400~2450 / 30dB@3000 SMT 15.5*10.0*7.5 Band Pass
MB3800-00F4PA 3800 / 2.0 1.0 1.5 40dB@3600&4000 SMT 10.0*10.0*5.5 Band Pass
MB1900-40K6PA 1900 40 3.0 1.0 2.0 35dB@1850&1950 SMT 21.7*9.8*7.0 Band Pass
AB388-17F3PA 388 17 3.0 1.0 1.5 21dB@361~416 SMT 13.0*12.0*9.0 Band Pass
MB2252-104H8PA 2252 104 2.0 1.0 1.5 15dBc@2180~2324 / 45dBc@2127~2377 SMT 28.5*11.0*6.0 Band Pass
MB1842-75F4PA 1842 75 3.0 1.5 1.5 10dB @1785~1900 / 20dB@1765~1920 SMT 13.0*12.0*5.5 Band Pass
MB5787-125H6PA 5787 125 3.0 1.0 1.5 50dB@5498.15~6077 SMT 22.5*10.9*6.5 Band Pass
AB1090-280H9PA 1090 280 2.3 1.0 1.5 50dB @650~ / 37dB@1320~ SMT 48.4*14.0*6.5 Band Pass
MB1445-44F3CA 1445 44 2.0 1.0 1.5 30dB@50~1190 / 30dBc@1700~3000 SMT 8.5*8.0*4.2 Band Pass
MB1569-21H4CA 1569 21 1.5 1.0 1.5 20dBc@1615 / 30dBc@1620~1626 SMT 11.5*9.0*5.0 Band Pass
AB1237-44F3PA 1237 44 1.0 0.6 2.0 10dB@1137~1337 / 15dB@1087~1387 SMT 12.5*14*4.8 Band Pass
AB1090-35K4PA 1090 35 3.0 1.0 1.5 25dB @1130&1050 SMT 27.5*14.0*7.8 Band Pass
MB1445-44F5PA 1445 44 3.0 1.0 1.5 52dBc@50~1330 45dBc@1570~3000 SMT 14.0*8.0*5.5 Band Pass
MB2345-50H6PA 2345 50 3.5 1.5 1.5 45dB @2500~ 45dB@2170~ SMT 13.0*12.0*5.9 Band Pass
MB1587-60F5CA 1587 60 2.2 1.0 1.4 35dB @1487.5~1687.5 SMT 13.25*5.8*4.5 Band Pass
MB1513-30N8PA 1513 30 2.4 1.0 1.3 40dB @1478~1551 SMT 33.4*11.5*9.5 Band Pass
MB2600-100H6PA 2600 100 2.5 1.0 1.5 20dB @2350~3150 SMT 23.5*11.9*6.5 Band Pass
AB1900-40D4PA 1900 40 2.0 0.5 1.5 50dB @2110~2170 50dB@2412~2484 SMT 13.0*12.0*4.5 Band Pass
MB1300-200K4PB 1300 200 0.6 0.3 15 20dB @1000~1600 SMT 15.52*10.0*7.5 Band Pass
MB916-02F2MA 916 2 4.0 1.2 2.3 7dB@905&925 SMT 7.45*8.7*3.8 Band Pass
MB847-26K8PA 847 26 11.0 7.0 1.9 29dB @831~863 SMT 28.5*13.0*7.5 Band Pass
MB1950-40K8PA 1950 40 7.0 4.0 1.5 26dB @1920&1980 45dB@1910&1990 SMT 28.5*13.0*7.5 Band Pass
MB1042-15F4PA 1042 15 2.5 0.5 1.5 10dB @1000& 20dB@1070& SMT 10.0*10.0*5.5 Band Pass
