Dielectric Filter

LC Filter

Filter Module

Metal Cavity Filter

Microwave Components

Micro-package Device

RF Module/Component

Home

Product

Filter Module

PCB Package

Product Classification

PCB Package Cavity Package Filter Switch Assembly

-1_0000_滤波器模块

-1_0001_滤波器模块02

-1_0001_滤波器模块02

PCB Package

Product Features:

High suppression system, low insertion loss, high power

Surface mount: small size and light weight

Customization: Support customization (size and input/output form can be designed upon request)

Frequency range: DC~30GMHz

Power range: 5W~200W

application area

Base station, small station

RF microwave

Wi-Fi

Repeater

Classical curve

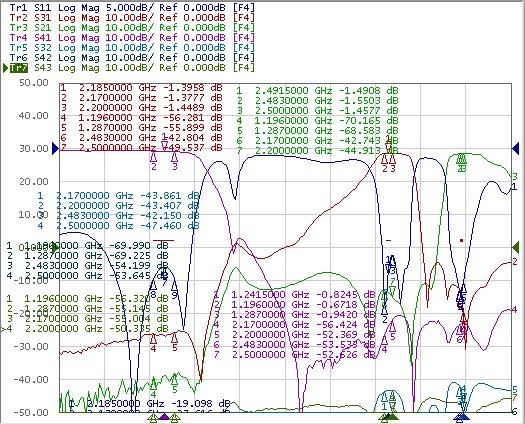

Typical curves of the D-Series

Model	CH1				CH2				CH3				CH4				Size（WLH)
	I/L	R/P	VSWR	Attenuation	I/L	R/P	VSWR	Attenuation	I/L	R/P	VSWR	Attenuation	I/L	R/P	VSWR	Attenuation
D10-1200-1600A	1.0	0.5	1.5	70dB@1100~1300 70dB@1500~1700	3.0	1.0	1.5	70dB@DC~10 70dB@1500~1700	3.0	1.0	1.5	70dB@DC~10 70dB@1100~1300					624113
D140-300-433A	3.5	1.0	1.5	45dBc@122.5~157.5 45dBc@282.5~317.5	2	1.0	1.5	45dBc@122.5~157.5 45dBc@430.5~435.5	1.2	1.0	1.5	45dBc@282.5~317.5 45dBc@430.5~435.5					55188.5
D140-680-900A	1.5	1.0	1.5	50dB@670~690 50dB@890~910	1.5	1.0	1.5	50dB@130~150 50dB@890~910	1.5	1.0	1.5	50dB@130~150 50dB@670~690					354010
D358-1473-1750A	0.8	0.6	1.5	70dB@1421-1526 70dB@1696-1804	2	0.6	1.5	40dB@336-380 40dB@1696-1804	2	0.6	1.5	60dB@336-380 60dB@1421-1526					655212
D789-856A	3.0	1.0	1.5	60dBc@799~816 50dBc@851~861	3	1.0	1.5	60dBc@769~775 60dBc@851~861	3	1.0	1.5	60dBc@769~775 60dBc@799~816					953236
D830-1940-2595A	3.0	1.0	1.5	30dBc@1710~2170 30dBc@2500~2690	3	1.0	1.5	30dBc@700~960 30dBc@2500~2690	3	1.0	1.5	30dBc@700~960 30dBc@1710~2170					45306.5
D860-2045B	837.5±7.5				882.5±7.5				1950±10				2140±10				55439.7
D860-2045B	2.2	0.5	1.5	55.3@875~890 50.3@1940~1960 50.3@2130~2150 30.3@700~803 20.3@860~875 20.3@890~2690	2.55	0.7	1.5	55.3@830~845 50.3@1940~1960 50.3@2130~2150 40.3@700~803 40.3@803~830 20.3@900~2690	2.7	0.5	1.5	50.3@830~845 50.3@875~890 55.3@2130~2150 17.3@700~1925 15.3@1925~2690	2.65	0.45	1.5	50.3@830~845 50.3@875~890 55.3@1940~1960 20.3@700~2110 20.3@2170~2690	55439.7
