Filter Module PCB Package

prod-banner
Product Classification
-1_0001_滤波器模块02

D10-1200-1600A

share:
Electrical Specification

Item

CH1

CH2

CH3

Unit

I/L

1.0

3.0

3.0

dB

R/P

0.51.01.0

dB

VSWR

1.51.51.5

Attenuation

70dB@1100~1300

70dB@1500~1700

70dB@DC~10

70dB@1500~1700

70dB@DC~10

70dB@1100~1300

dB

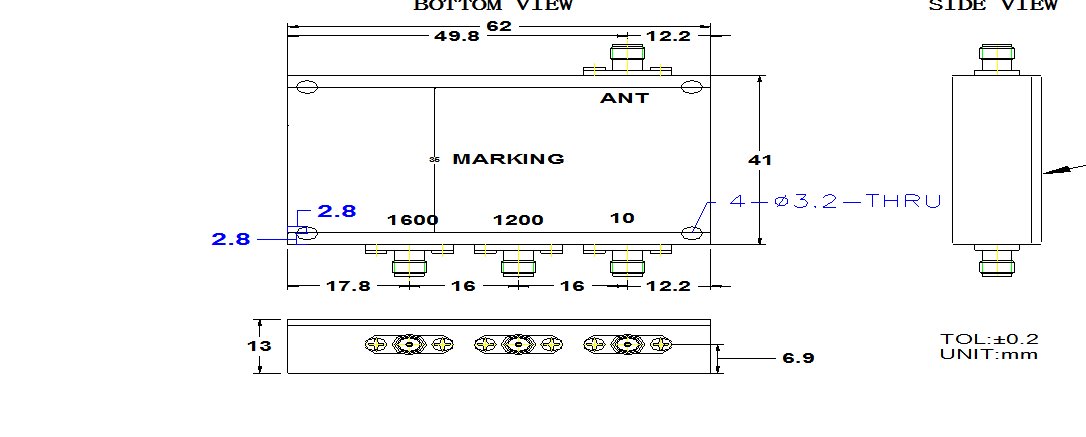

Size(W*L*H)

62*41*1362*41*1362*41*13

mm


Plot Data
