Product Classification
-1_0001_滤波器模块02

D830-1940-2595A

share:
Electrical Specification

Item

CH1

CH2

CH3

Unit

I/L

3.0

3.0

3.0

dB

R/P

1.01.01.0

dB

VSWR

1.51.51.5

Attenuation

30dBc@1710~2170

30dBc@2500~2690

30dBc@700~960                30dBc@2500~2690

30dBc@700~960

30dBc@1710~2170

dB

Size(W*L*H)

45*30*6.545*30*6.545*30*6.5

mm

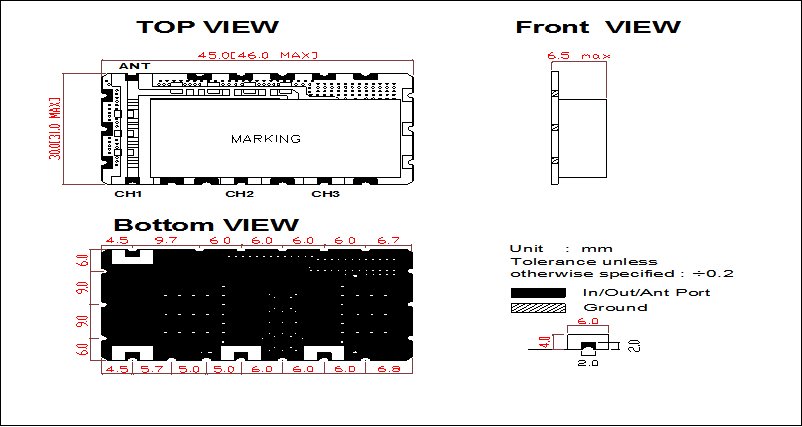

Mechanical Specification
