D860-2045B

Electrical Specification

Item	CH1	CH2	CH3	CH4	Unit
I/L	2.2	2.55	2.7	2.65	dB
R/P	1.0	0.7	0.5	0.45	dB
VSWR	1.5	1.5	1.5	1.5
Attenuation	55.3@875~890 50.3@1940~1960 50.3@2130~2150 30.3@700~803 20.3@860~875 20.3@890~2690	55.3@830~845 50.3@1940~1960 50.3@2130~2150 40.3@700~803 40.3@803~830 20.3@900~2690	50.3@830~845 50.3@875~890 55.3@2130~2150 17.3@700~1925 15.3@1925~2690	50.3@830~845 50.3@875~890 55.3@1940~1960 20.3@700~2110 20.3@2170~2690	dB
Size（WLH)	55439.7	55439.7	55439.7	55439.7	mm

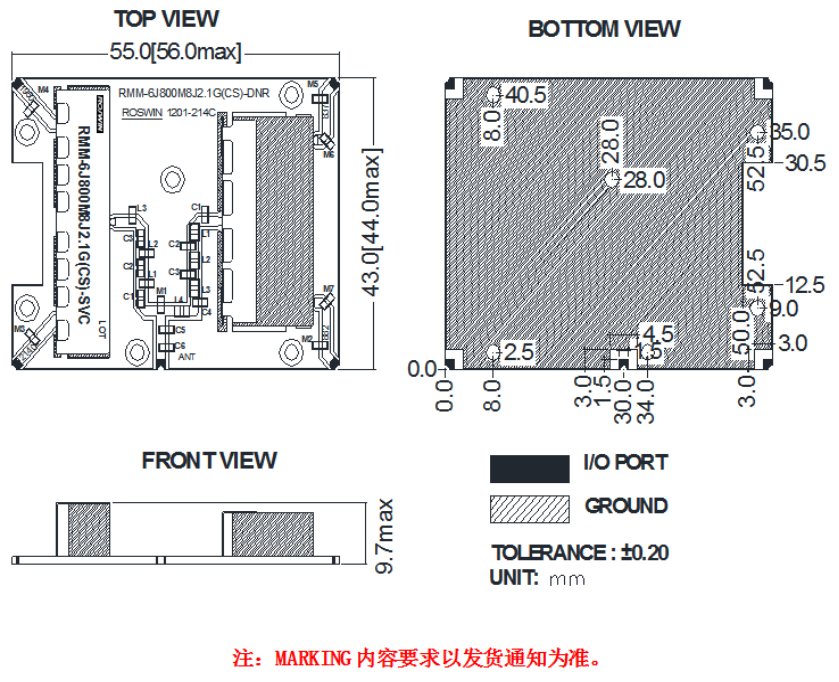

Mechanical Specification

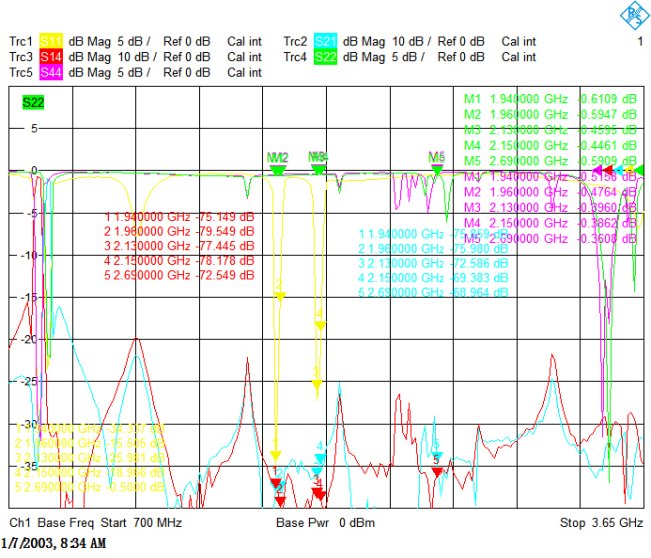

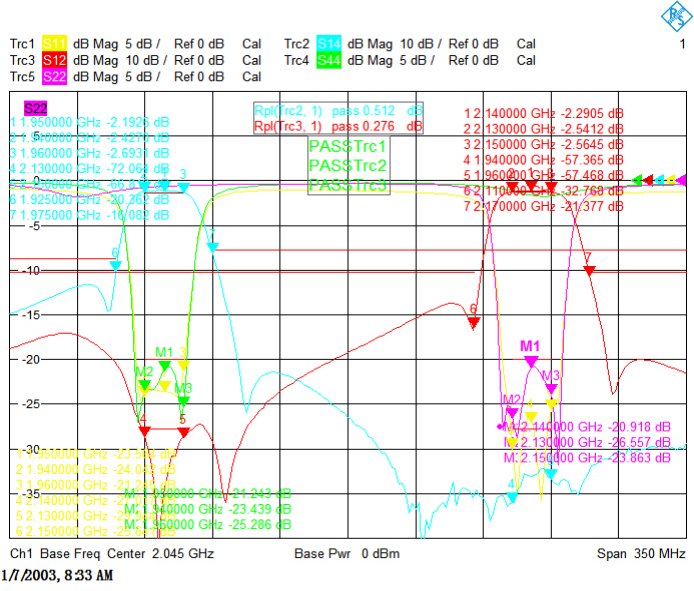

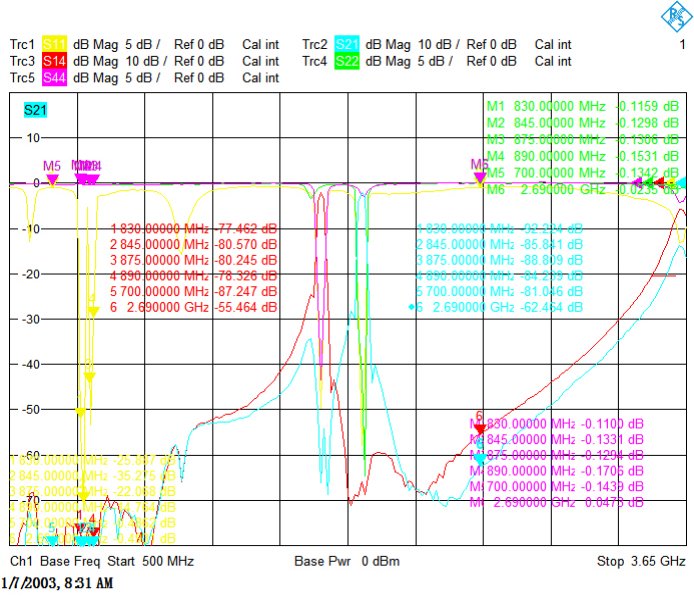

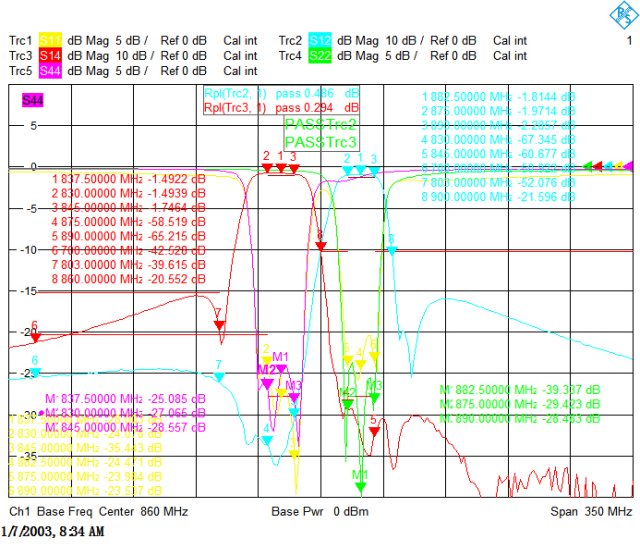

Plot Data
