MD781-751F10N11PA

share:
Electrical Specification
ItemSpecUnit
Center FrequencyM.D781-751F10N11PAMHz
Band Width781-751MHz
Insertion Loss1111dB
Ripple in BW4.54.5dB
VSWR in BW33
Attenuation1.31.3dB
Interface Method

50dB@746~757

25dB@766.5~746

TBD@1850~1990

50dB@776~787

25dB@787~766.5

 TBD@1850~1990


Size(W*L*H)SMTmm
Form30.0*12.8*5.5

Band Pass

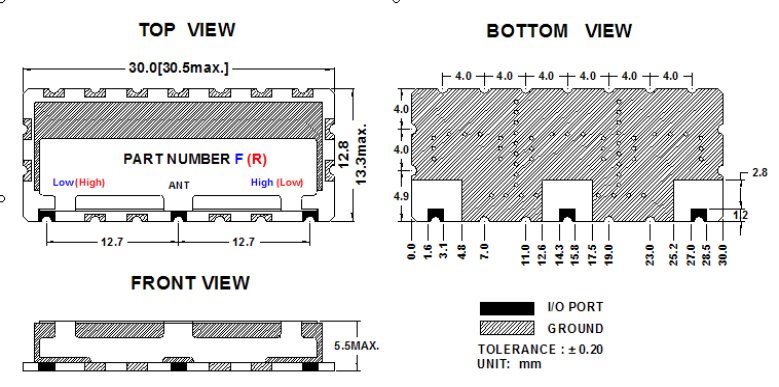

Mechanical Specification

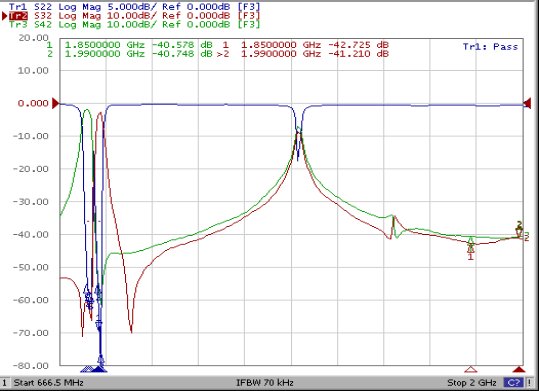

Plot Data
