LD355-690C4-10HA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

355-690

MHz

Band Width

4

10

MHz

Insertion Loss

1.31.3

dB

Ripple in BW

0.6

0.6

dB

VSWR in BW

1.5

1.5


Attenuation

50dBc@690~930

45dB@1000~1500

dB

Interface Method

SMT


Size(W*L*H)

58.0*23.5*10.0

mm

Form

Band Pass

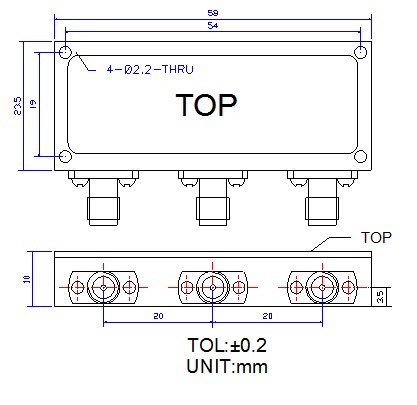

Mechanical Specification

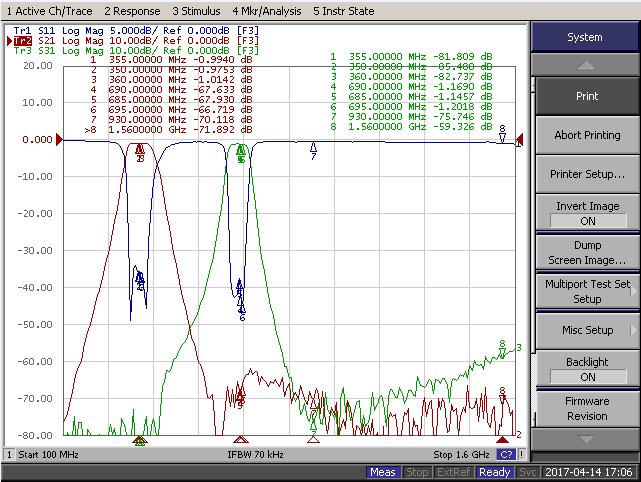

Plot Data
