LD141-440C9N66-144PA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

141-440

MHz

Band Width

66

144

MHz

Insertion Loss

3.03.0

dB

Ripple in BW

1.5

1.5

dB

VSWR in BW

1.61.6

Attenuation

45dB@368~512

45dB@108~174

dB

Interface Method

SMT


Size(W*L*H)

30.0*20.0*8.0

mm

Form

Band Pass

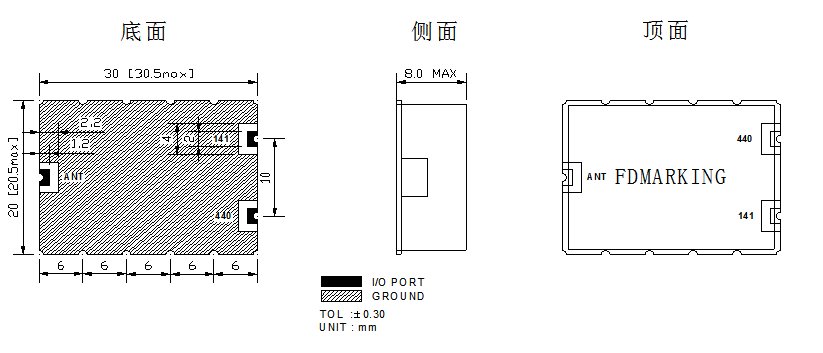

Mechanical Specification

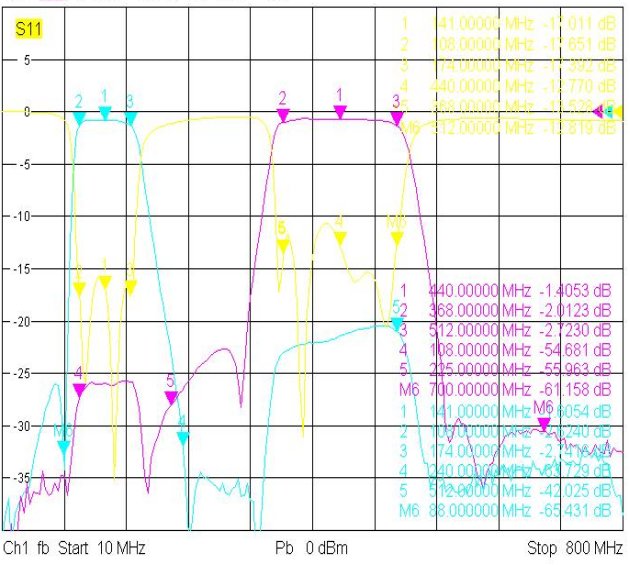

Plot Data
