LD450-1250-C9HA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

450-1250

MHz

Band Width

300

500

MHz

Insertion Loss

1.01.0

dB

Ripple in BW

1.0

1.0

dB

VSWR in BW

1.6

1.6


Attenuation

45dB@1000~1500

45dB@300~600

dB

Interface Method

SMT


Size(W*L*H)

47.0*18.0*10.0

mm

Form

Band Pass

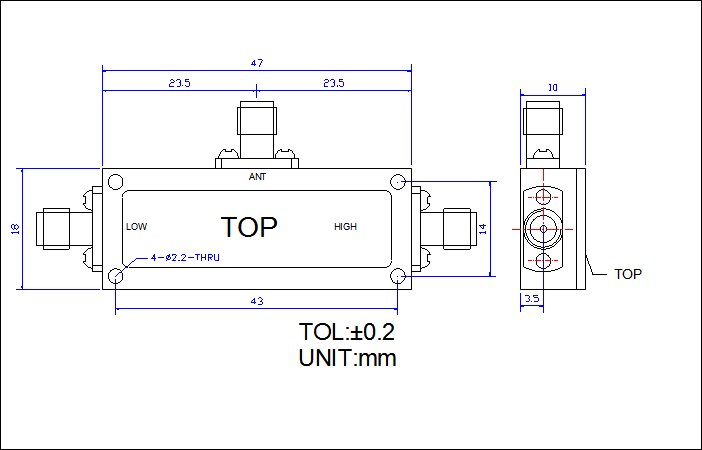

Mechanical Specification

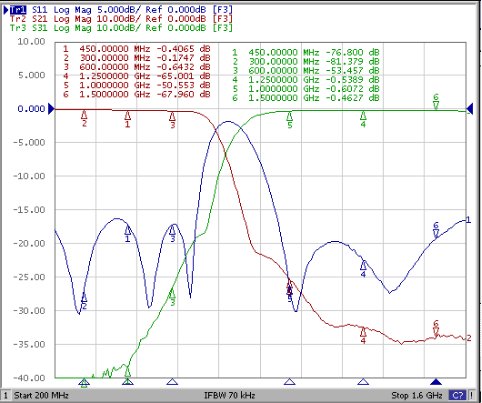

Plot Data
