LD829-2105C10R262-790PA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

829-2105

MHz

Band Width

262

790

MHz

Insertion Loss

1.01.0

dB

Ripple in BW

0.5

0.5

dB

VSWR in BW

1.5

1.4


Attenuation

30dB@1710~2500

40dB@698~960

dB

Interface Method

SMT


Size(W*L*H)

39.6*9.0*5.3

mm

Form

Band Pass

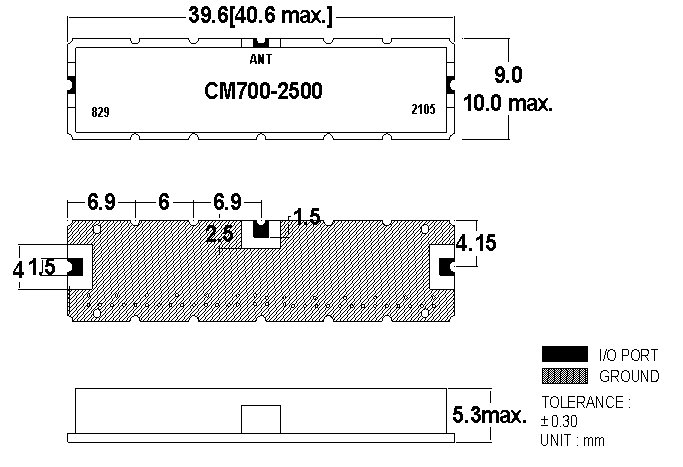

Mechanical Specification

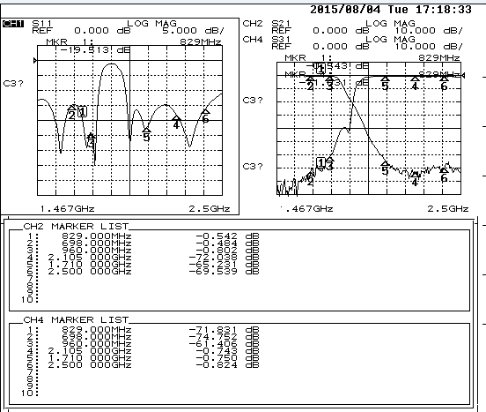

Plot Data
