LE54-209C9N48-182PA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

54-209

MHz

Band Width

48

182

MHz

Insertion Loss

1.51.5

dB

Ripple in BW

1.5

1.5

dB

VSWR in BW

1.3

1.3


Attenuation

30dB@88~108

30dB@88~108

dB

Interface Method

SMT


Size(W*L*H)

20.0*15.0*6.0

mm

Form

Band Pass

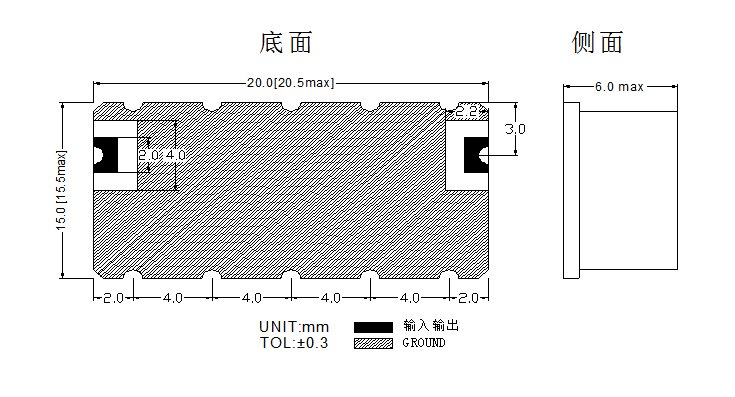

Mechanical Specification

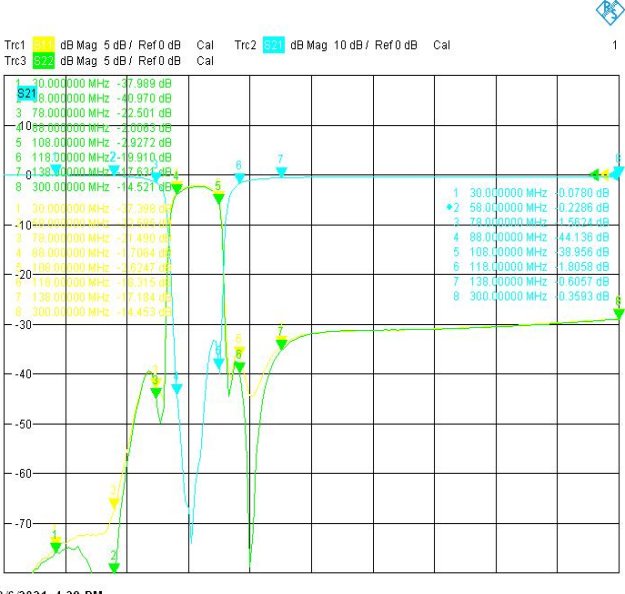

Plot Data
