LD2200-850C10R1000-300PA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

850-2200

MHz

Band Width

1000

300

MHz

Insertion Loss

1.01.0

dB

Ripple in BW

0.5

0.5

dB

VSWR in BW

1.5

1.5


Attenuation

50dB@1700~2700

50dB@700~1000

dB

Interface Method

SMT


Size(W*L*H)

39.6*9.0*5.3

mm

Form

Band Pass

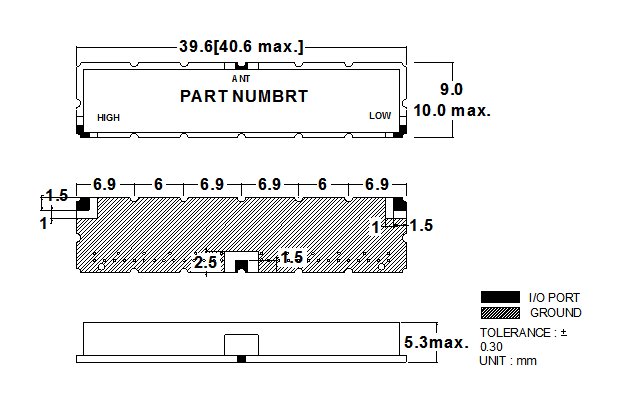

Mechanical Specification

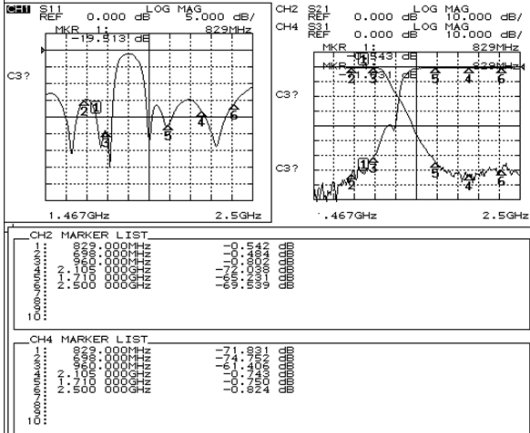

Plot Data
