MB2491-08D2MA

share:
Electrical Specification
ItemSpecUnit
Center Frequency

2491

MHz
Band Width

8

MHz
Insertion Loss

0.6

dB
Ripple in BW

0.3

dB
VSWR in BW

1.5


Attenuation

30dBc@1616

dB
Interface MethodSMT
Size(W*L*H)5.8*4.7*2.95mm
FormBand Pass

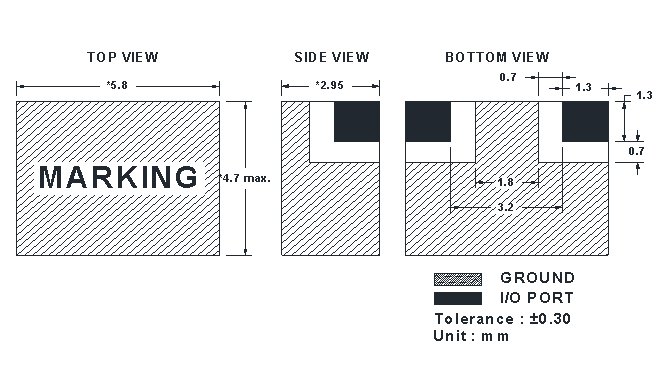

Mechanical Specification

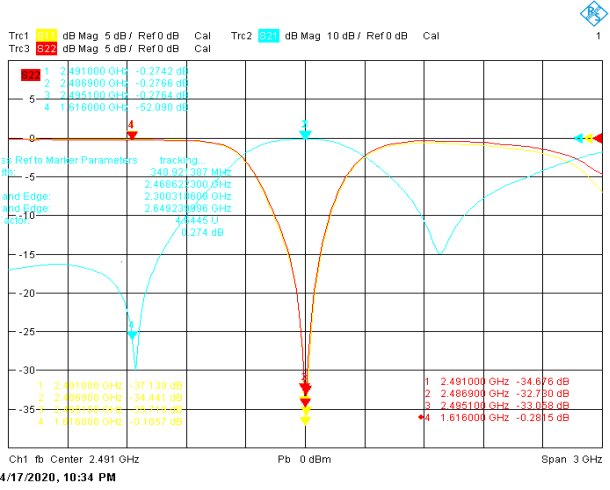

Plot Data
