MB1575-40F2MA

share:
Electrical Specification
ItemSpecUnit
Center Frequency1575MHz
Band Width40MHz
Insertion Loss0.8dB
Ripple in BW0.3dB
VSWR in BW1.5
Attenuation10dB@1475

10dB@1675

dB
Interface MethodSMT
Size(W*L*H)7.5*7.5*3.7mm
FormBand Pass

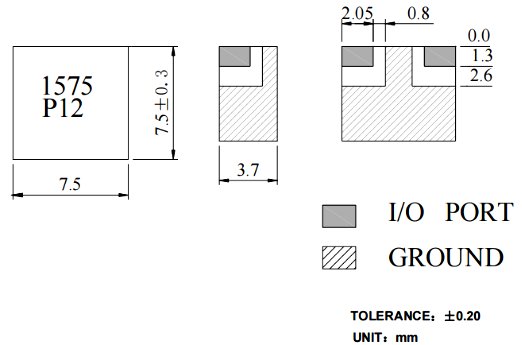

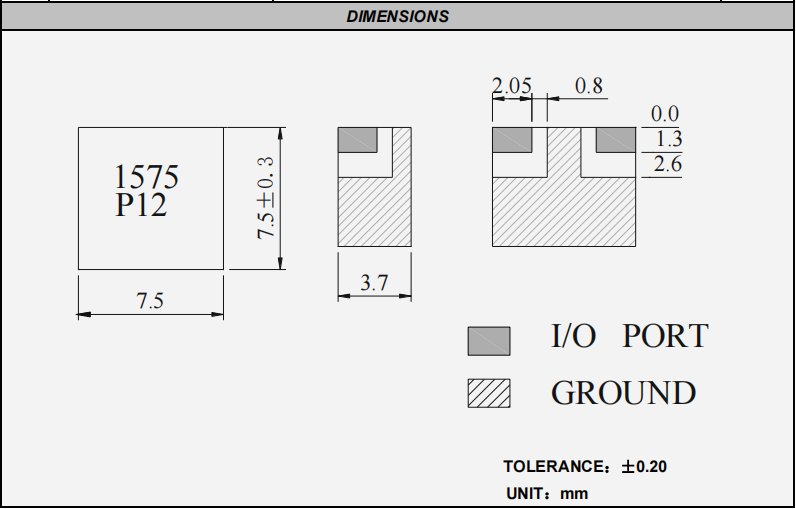

Mechanical Specification

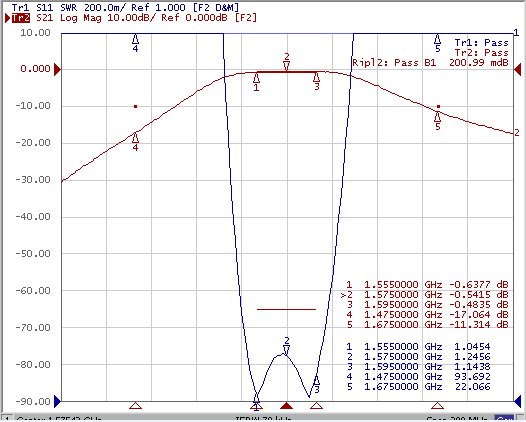

Plot Data
