MB1575-40D2MA

share:
Electrical Specification
ItemSpecUnit
Center Frequency

1575

MHz
Band Width

40

MHz
Insertion Loss

0.8

dB
Ripple in BW

0.3

dB
VSWR in BW

1.5


Attenuation

10dBc@1475&1675

dB
Interface MethodSMT
Size(W*L*H)6.1*7.0*3.0mm
FormBand Pass

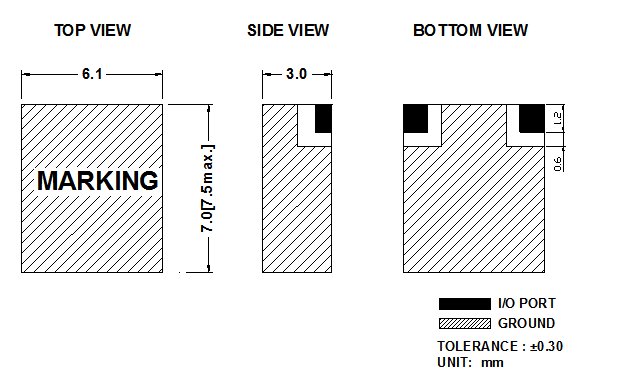

Mechanical Specification

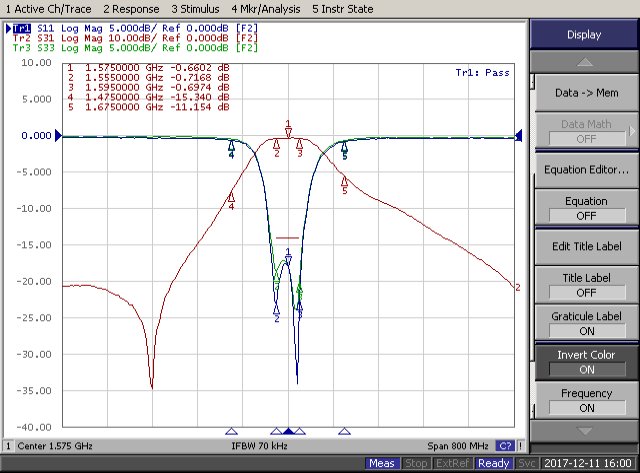

Plot Data
