MB1575-20K8PA

share:
Electrical Specification
ItemSpecUnit
Center Frequency

1575

MHz
Band Width

20.4

MHz
Insertion Loss

3.3

dB
Ripple in BW0.5dB
VSWR in BW1.5
Attenuation

35dBc@DC~1535.4

35dBc@1615.4~2000

dB
Interface MethodSMT
Size(W*L*H)28.5*11.0*7.0mm
FormBand Pass

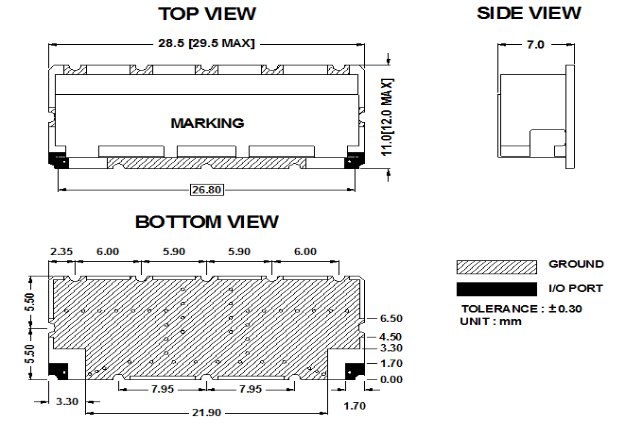

Mechanical Specification

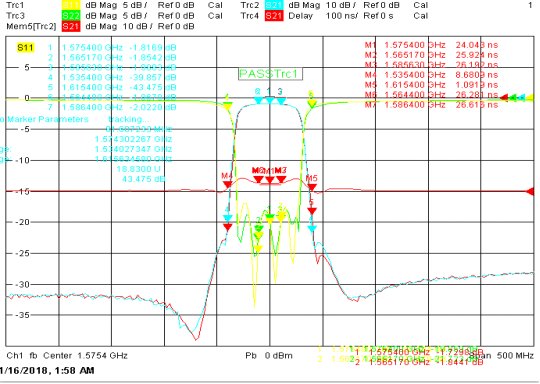

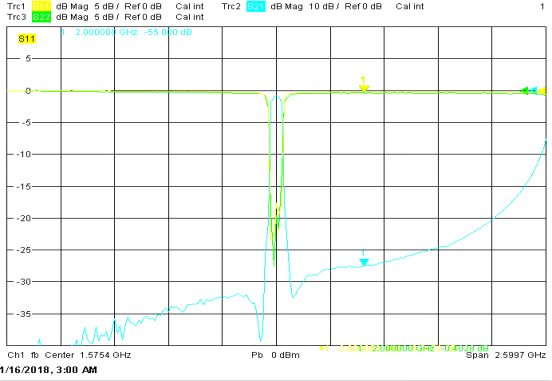

Plot Data
