MB1568-50D2MA

share:
Electrical Specification
ItemSpecUnit
Center Frequency

1568

MHz
Band Width

50

MHz
Insertion Loss

0.7

dB
Ripple in BW

0.3

dB
VSWR in BW

1.5


Attenuation

10dBc@1468&1668

20dBc@1368&1768

dB
Interface MethodSMT
Size(W*L*H)6.1*7.5*2.95mm
FormBand Pass

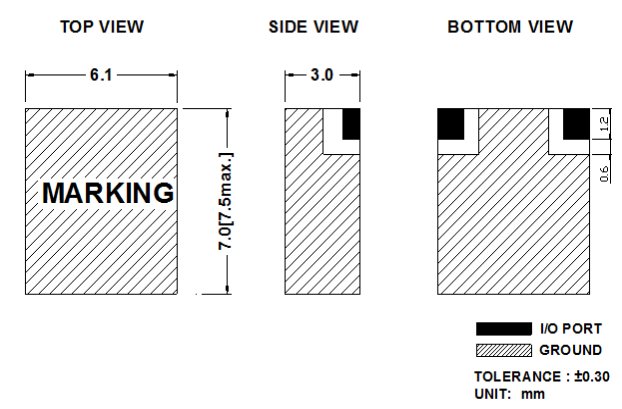

Mechanical Specification

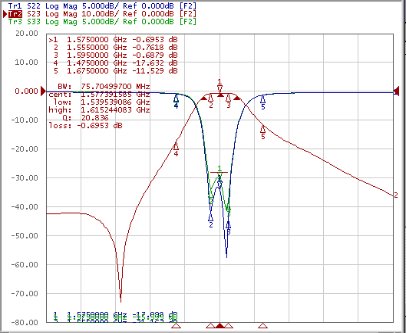

Plot Data
