MB1561-05D2MA

share:
Electrical Specification
ItemSpecUnit
Center Frequency

1568

MHz
Band Width

50

MHz
Insertion Loss

0.7

dB
Ripple in BW

0.2

dB
VSWR in BW

1.3


Attenuation

35dB@DC~1268

1dB@DC~1616

15dB@DC~2492

dB
Interface MethodSMT
Size(W*L*H)6.0*7.5*3.0mm
FormBand Pass

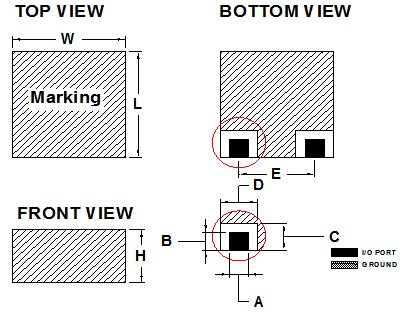

Mechanical Specification
