MB1268-24D3MA

share:
Electrical Specification
ItemSpecUnit
Center Frequency

2491

MHz
Band Width

24

MHz
Insertion Loss

0.6

dB
Ripple in BW

0.5

dB
VSWR in BW

1.5


Attenuation

40dBc@1611.0~1621.0

dB
Interface MethodSMT
Size(W*L*H)

6.7*6.5*3.

mm
FormBand Pass

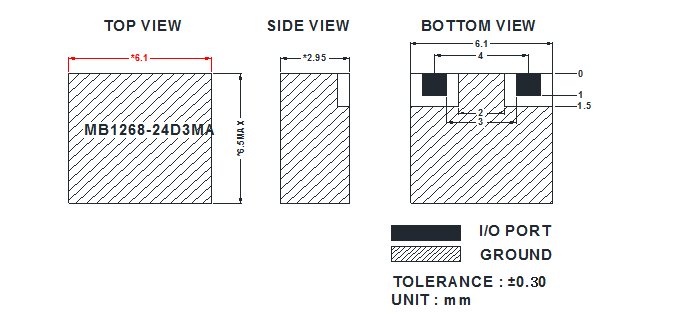

Mechanical Specification

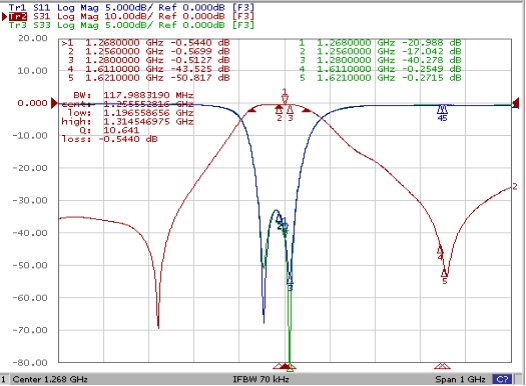

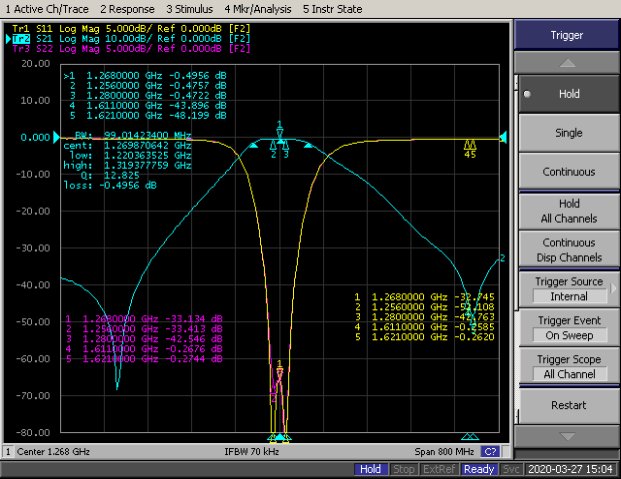

Plot Data
