MB1268-24D2MC

share:
Electrical Specification
ItemSpecUnit
Center Frequency

1268

MHz
Band Width

24

MHz
Insertion Loss

0.5

dB
Ripple in BW

0.2

dB
VSWR in BW

1.5


Attenuation

40dBc@1611~1621

dB
Interface MethodSMT
Size(W*L*H)6.7*2.95*6.5mm
FormBand Pass

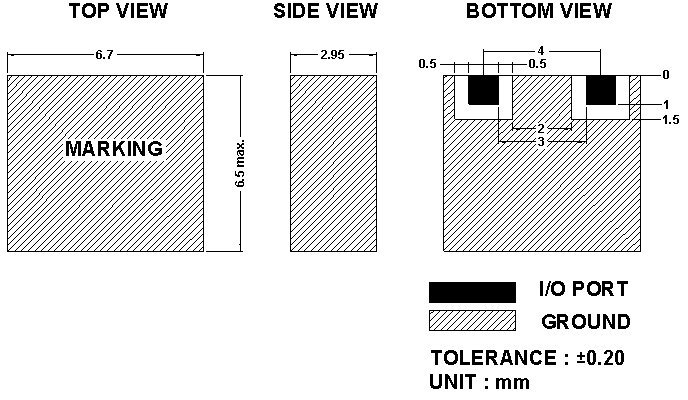

Mechanical Specification

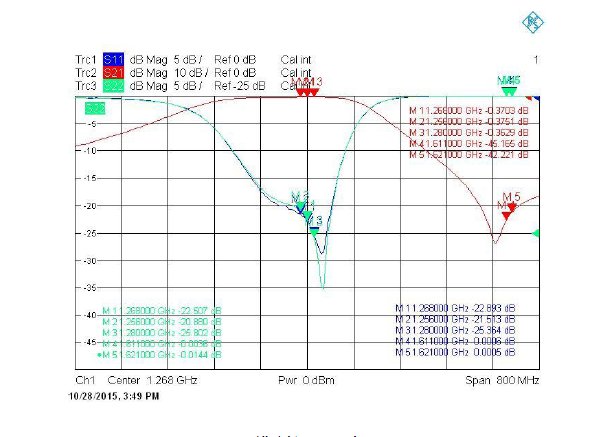

Plot Data
