MB1268-21D2MB

share:
Electrical Specification
ItemSpecUnit
Center Frequency

1268

MHz
Band Width

21

MHz
Insertion Loss

0.7

dB
Ripple in BW

0.3

dB
VSWR in BW1.4
Attenuation

10dBc@1168.5&1368.5

20dBc@1068.5&1468.5

dB
Interface MethodSMT
Size(W*L*H)6.1*6.5*2.95mm
FormBand Pass

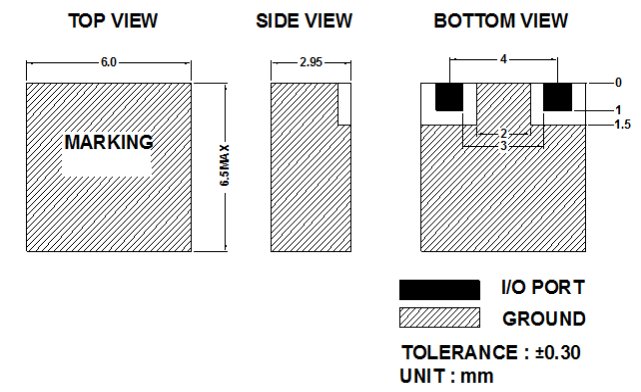

Mechanical Specification
