MB1232-136F4CA

share:
Electrical Specification
ItemSpecUnit
Center Frequency1232MHz
Band Width136MHz
Insertion Loss1.3dB
Ripple in BW1dB
VSWR in BW1.5
Attenuation

8dB@1132

5dB@1332        35dB@1032

40dB@1432

dB
Interface MethodSMT
Size(W*L*H)10.8*10.4*4.2mm
FormBand Pass

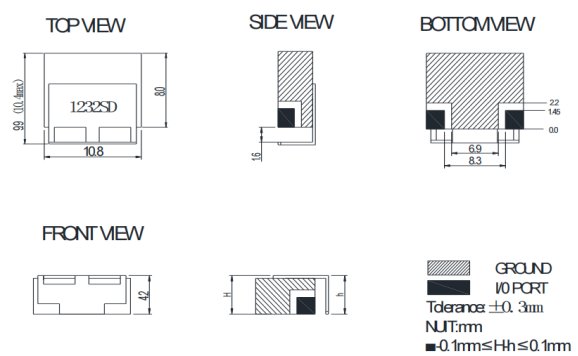

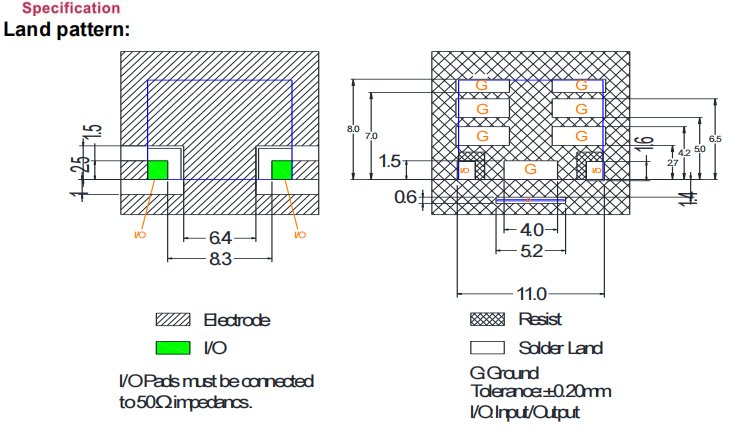

Mechanical Specification

Plot Data
