MB1207-20D2MA

share:
Electrical Specification
ItemSpecUnit
Center Frequency

1207

MHz
Band Width

20

MHz
Insertion Loss

0.8

dB
Ripple in BW

0.3

dB
VSWR in BW1.5
Attenuation

10dB@1107&1307

20dB@1097&1317

dB
Interface MethodSMT
Size(W*L*H)6.1*6.2*3.0mm
FormBand Pass

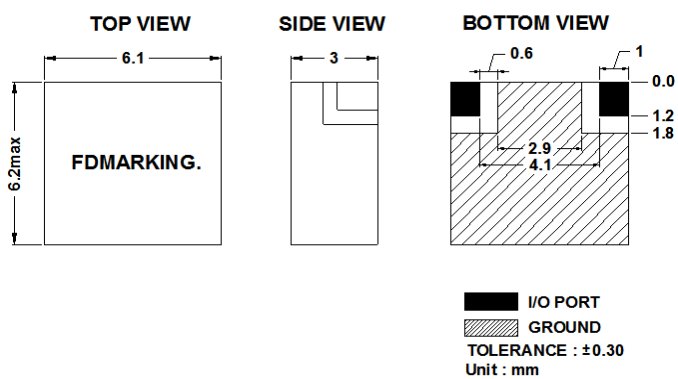

Mechanical Specification
