CB9600-1000C5HA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

9600

MHz

Band Width

1000

MHz

Insertion Loss

1.5

dB

Ripple in BW

1.0

dB

VSWR in BW

1.5


Attenuation

70dBc@4800

70dBc@14400

dB

Interface Method

SMA

Size(W*L*H)

30*12.5*7

mm

Form

Band Pass

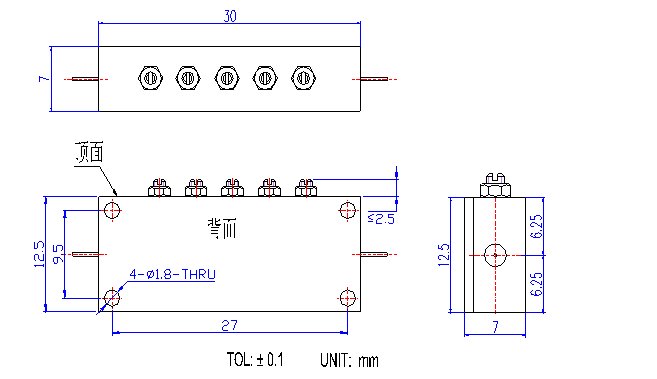

Mechanical Specification
