CB10000-2000C8HA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

1000

MHz

Band Width

2000

MHz

Insertion Loss

3.00

dB

Ripple in BW

1.0

dB

VSWR in BW

1.5


Attenuation

40dB@8500~

60dB@12000~

dB

Interface Method

SMA

Size(W*L*H)

40*11*8

mm

Form

Band Pass

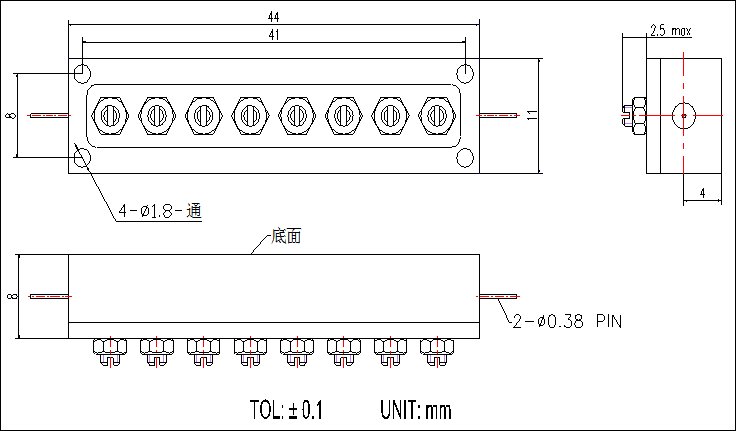

Mechanical Specification
