MB3450-300P7CA

share:
Electrical Specification
ItemSpecUnit
Center Frequency3450MHz
Band Width300MHz
Insertion Loss1.8dB
Ripple in BW1.2dB
VSWR in BW1.5
Attenuation

40dB@DC~690

50dB@699~960

35dB@960~1710

65dB@1710~2690  30dB@2690~3000

22dB@3000~3240

15dB@3240~3260  15dB@3640~3660  22dB@3660~3700  30dB@3700~4200

50dB@4200~5000

40dB@5000~5925

20dB@5950~6500

dB
Interface MethodSMT
Size(W*L*H)17.5*7*4.8mm
FormBand Pass

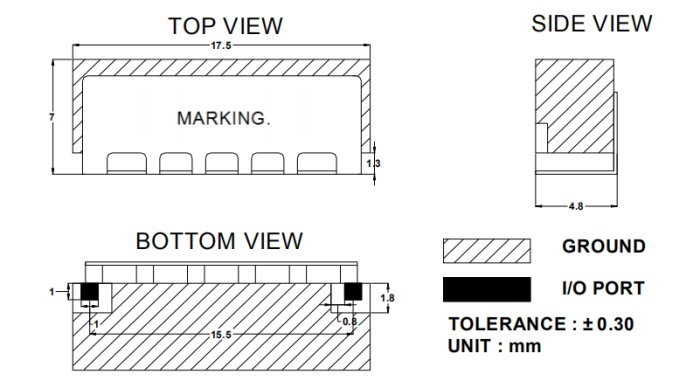

Mechanical Specification

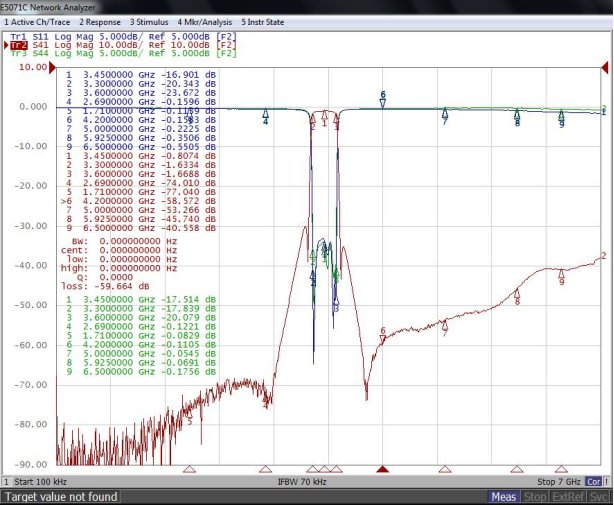

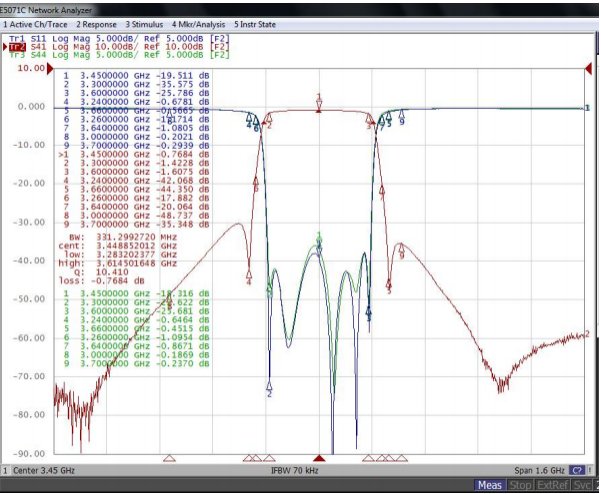

Plot Data
