MB2595-160P7CA

share:
Electrical Specification
ItemSpecUnit
Center Frequency2595MHz
Band Width160MHz
Insertion Loss3.5dB
Ripple in BW2.5dB
VSWR in BW1.4
Attenuation

30dB@DC~915

20dB@915~1400  30dB@1400~1517  20dB@1517~1626

30dB@1626~2025    20dB@2025~2400

30dB@2400~2485

30dB@2705~2775  20dB@2775~3300

30dB@3300~4200

dB
Interface MethodSMT
Size(W*L*H)14.5*6.9*4.8mm
FormBand Pass

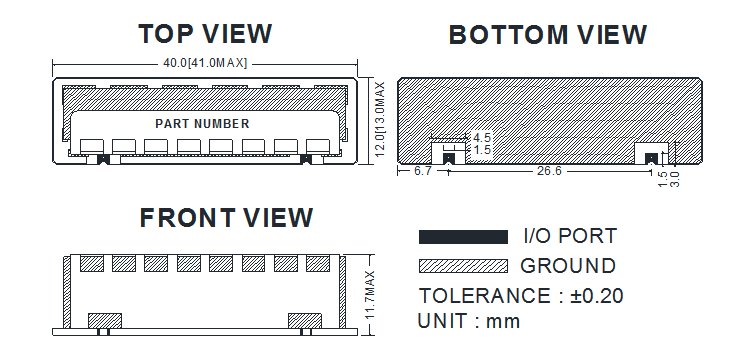

Mechanical Specification
