CB7400-500C6HA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

7400

MHz

Band Width

500

MHz

Insertion Loss

2.5

dB

Ripple in BW

1.0

dB

VSWR in BW

1.5


Attenuation

40dB@DC~6750  40dB@7950~20000

dB

Interface Method

SMA

Size(W*L*H)

40*12*11.5

mm

Form

Band Pass

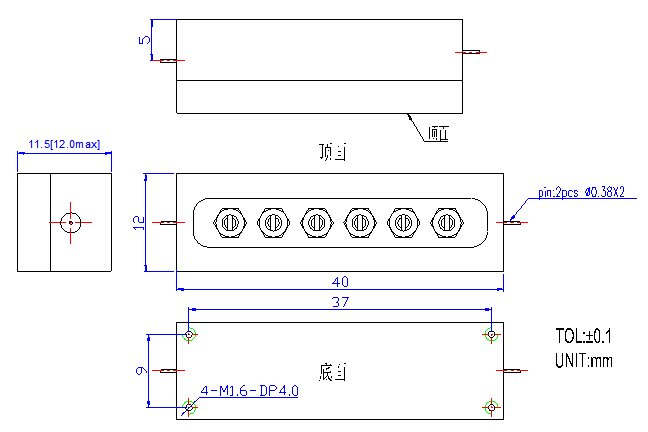

Mechanical Specification
