CB5225-40C5HA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

5225

MHz

Band Width

40

MHz

Insertion Loss

4

dB

Ripple in BW

1.0

dB

VSWR in BW

1.5


Attenuation

40dBc@5155      80dBc@4925&4965

dB

Interface Method

SMA

Size(W*L*H)

30*14*7

mm

Form

Band Pass

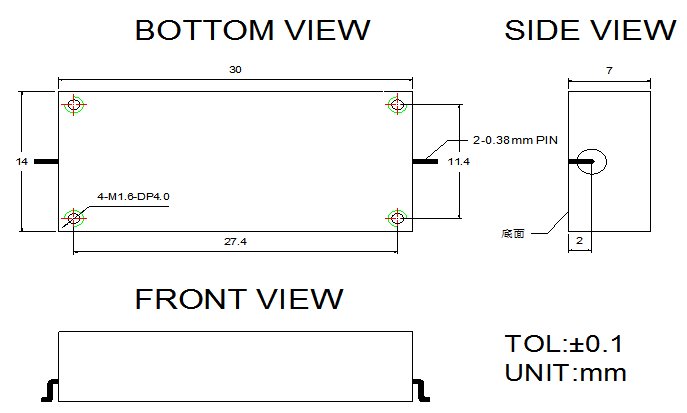

Mechanical Specification
