CB3950-500C10NHB

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

3950

MHz

Band Width

500

MHz

Insertion Loss

0.5

dB

Ripple in BW

0.5

dB

VSWR in BW

1.3


Attenuation

45dB@3000~3620   45dB@4275~4770

dB

Interface Method

SMA

Size(W*L*H)

120*69.9*98.4

mm

Form

Band Pass

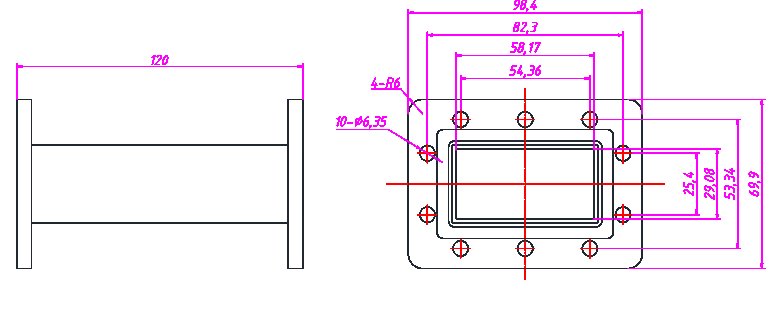

Mechanical Specification
