CB1800-100C7HA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

1800

MHz

Band Width

100

MHz

Insertion Loss

0.7

dB

Ripple in BW

0.5

dB

VSWR in BW

1.5


Attenuation

90dB@1650~2050

dB

Interface Method

SMA

Size(W*L*H)

104*45*19

mm

Form

Band Pass

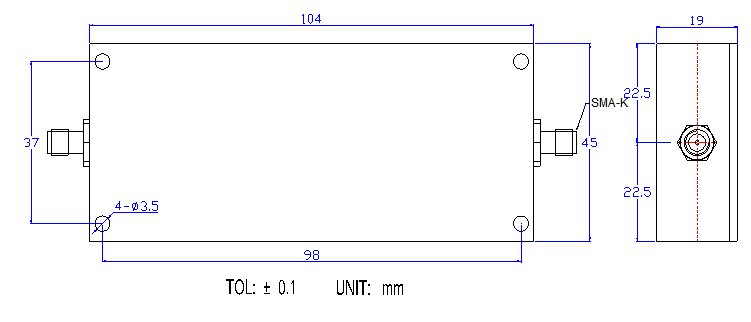

Mechanical Specification

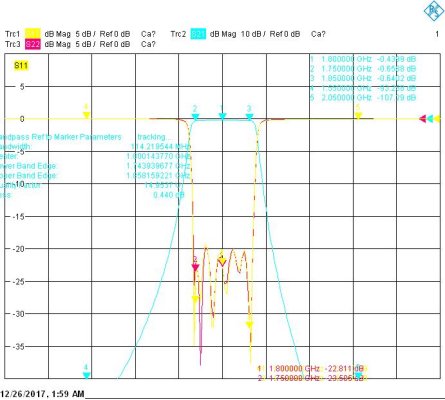

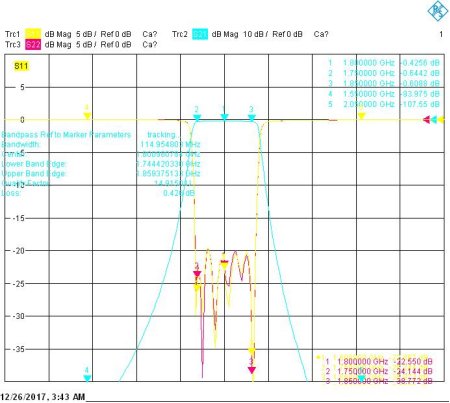

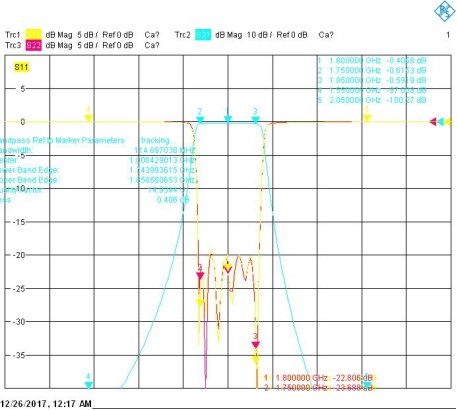

Plot Data
