CB1575-34C6HC

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

1575

MHz

Band Width

34

MHz

Insertion Loss

1.0(+25℃)

1.2

(-40℃~+85℃)

dB

Ripple in BW

0.6(+25℃)

0.8

(-40℃~+85℃)

dB

VSWR in BW

1.5


Attenuation

60dB@1610~1627

60dB@1630~2000

dB

Interface Method

SMA

Size(W*L*H)

82*46*24

mm

Form

Band Pass

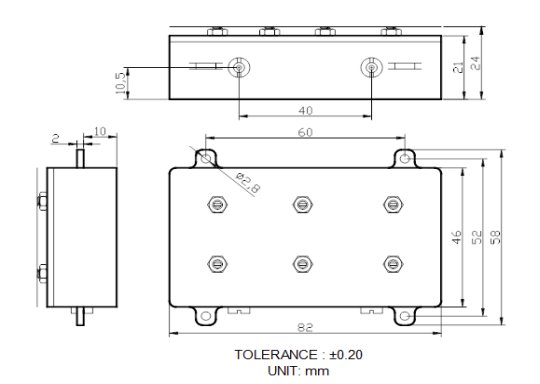

Mechanical Specification
