CB1350-520C8HA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

1350

MHz

Band Width

520

MHz

Insertion Loss

0.95

dB

Ripple in BW

0.75

dB

VSWR in BW

1.5


Attenuation

30dB@1025

40dB@1675

dB

Interface Method

SMA

Size(W*L*H)

112*56*20

mm

Form

Band Pass

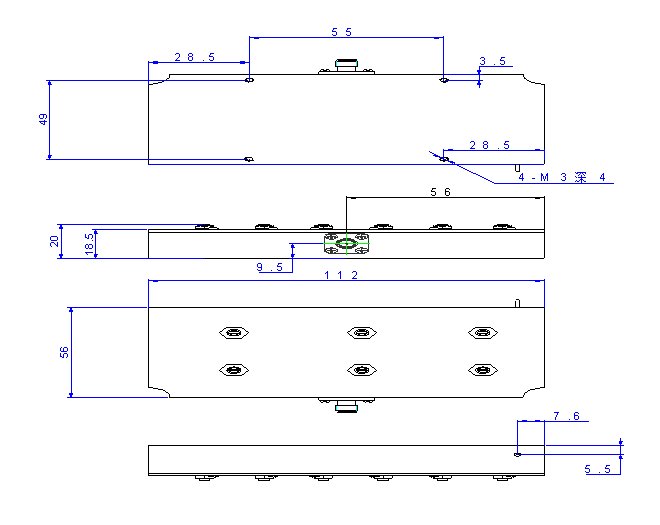

Mechanical Specification
