LB46-20-7CPA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

46.25

MHz

Band Width

20

MHz

Insertion Loss

3.0

dB

Ripple in BW

1.5

dB

VSWR in BW

1.5


Attenuation

55dB@30.52~62.52

dB

Interface Method

SMT

Size(W*L*H)

25.0*12.0*6.5

mm

Form

Band Pass

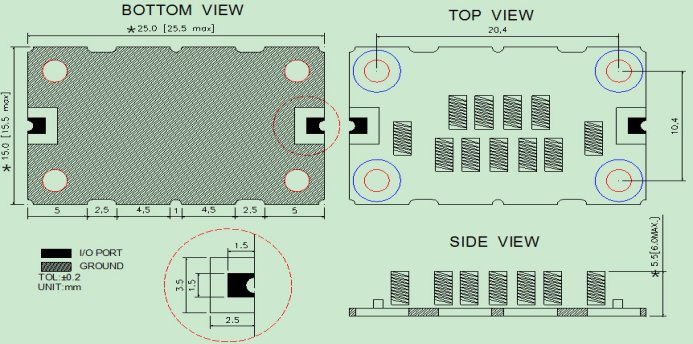

Mechanical Specification

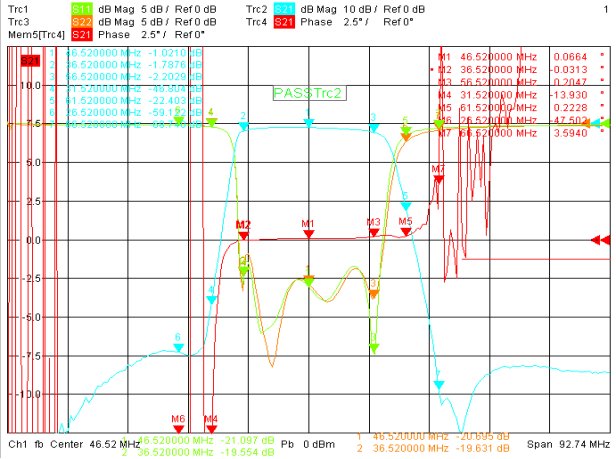

Plot Data
