LB46-17C6PA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

46

MHz

Band Width

17

MHz

Insertion Loss

1.5

dB

Ripple in BW

1.5

dB

VSWR in BW

1.5


Attenuation

42dB@31.5&61.5

dB

Interface Method

SMT

Size(W*L*H)

18.5*8.5*3.3

mm

Form

Band Pass

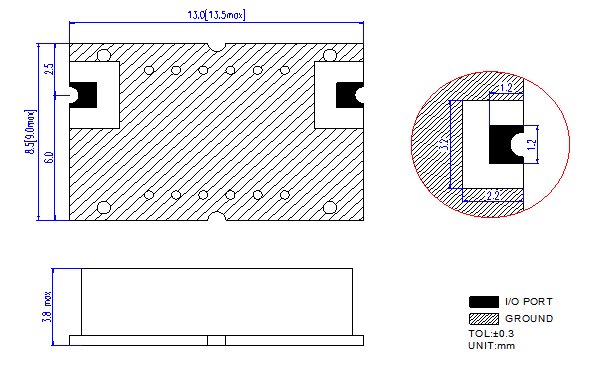

Mechanical Specification

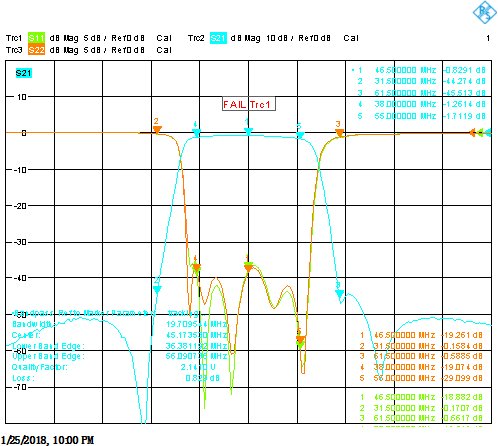

Plot Data
