LB46-16C6PA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

46.52

MHz

Band Width

16

MHz

Insertion Loss

3.5

dB

Ripple in BW

2.0

dB

VSWR in BW

1.5


Attenuation

55dB@30~62

dB

Interface Method

SMT

Size(W*L*H)

13.3*6.5*4.0

mm

Form

Band Pass

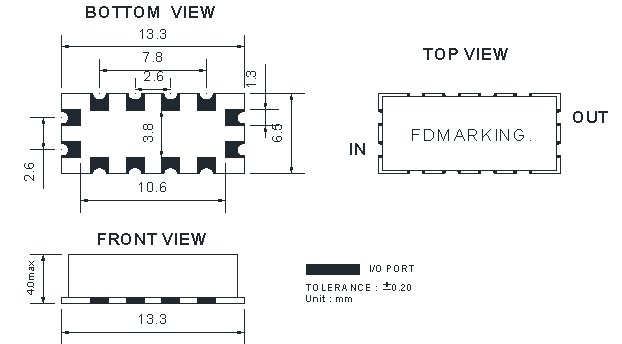

Mechanical Specification

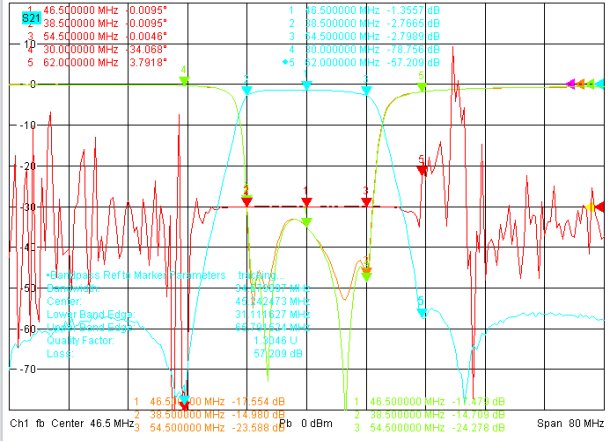

Plot Data
