LB32-20C6PA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

32

MHz

Band Width

20

MHz

Insertion Loss

1.5

dB

Ripple in BW

1.0

dB

VSWR in BW

1.6


Attenuation

55dB@6&54

dB

Interface Method

SMT

Size(W*L*H)

13.3*8.5*4.0

mm

Form

Band Pass

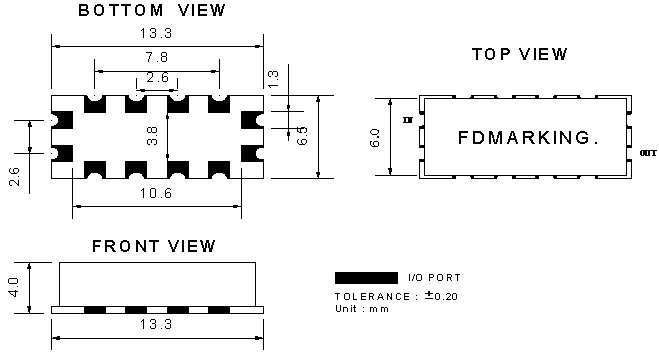

Mechanical Specification
