LB140-07C5PA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

140

MHz

Band Width

7

MHz

Insertion Loss

4.00

dB

Ripple in BW

1.00

dB

VSWR in BW

1.5


Attenuation

20dBc@122.5~157.5

45dBc@105~175

dB

Interface Method

SMT


Size(W*L*H)

19.0*13.0*5.5

mm

Form

Band Pass

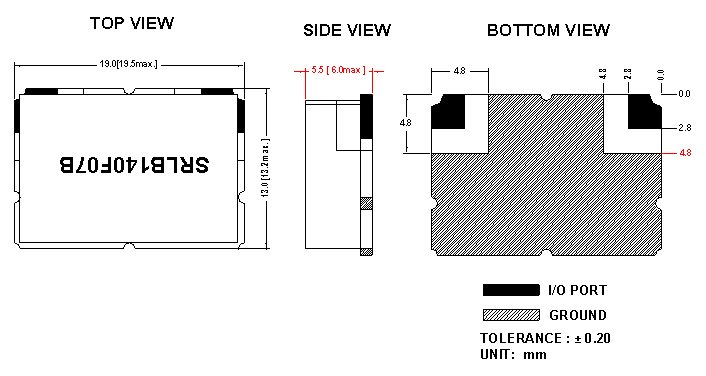

Mechanical Specification

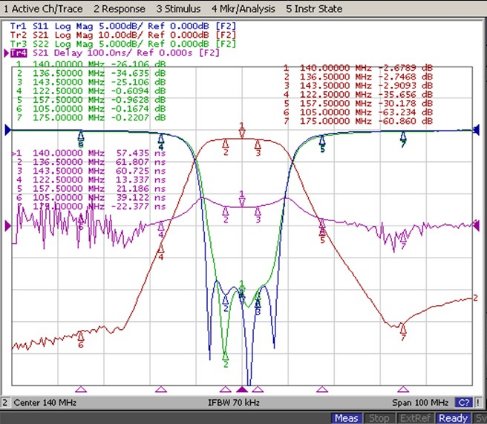

Plot Data
