LB46-21C6PA

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

46.52

MHz

Band Width

21(-3dB)

MHz

Insertion Loss

2.00

dB

Ripple in BW

1.00

dB

VSWR in BW

1.5


Attenuation

45dB@30.52~62.52

dB

Interface Method

SMT


Size(W*L*H)

13.0*8.5*3.8

mm

Form

Band Pass

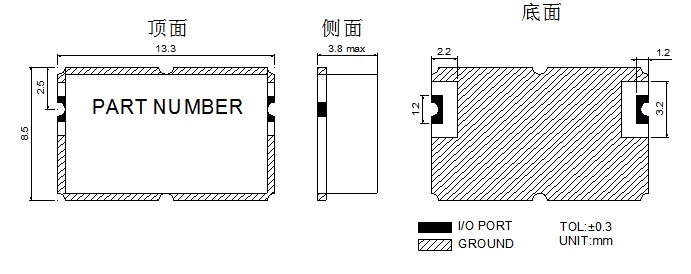

Mechanical Specification

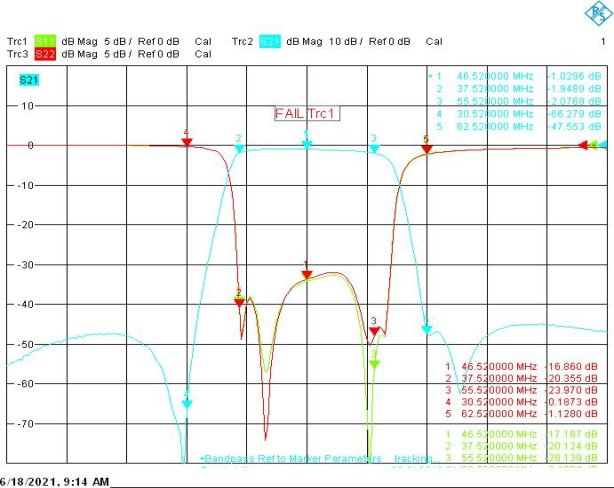

Plot Data
