LL680-C11PB

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

680

MHz

Band Width

/

MHz

Insertion Loss

0.90

dB

Ripple in BW

0.80

dB

VSWR in BW

1.5


Attenuation

40dBc@800~1200

70dBc@1200~1600

75dBc@1258~2100

65dBc@2170~3000

dB

Interface Method

SMT


Size(W*L*H)

20.0*10.0*4.0

mm

Form

Low Pass

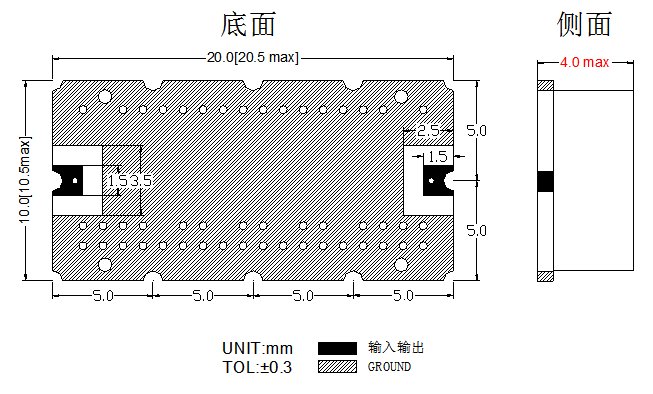

Mechanical Specification

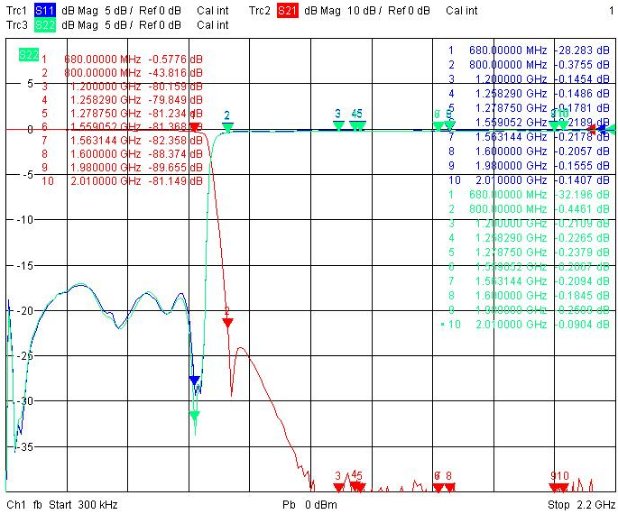

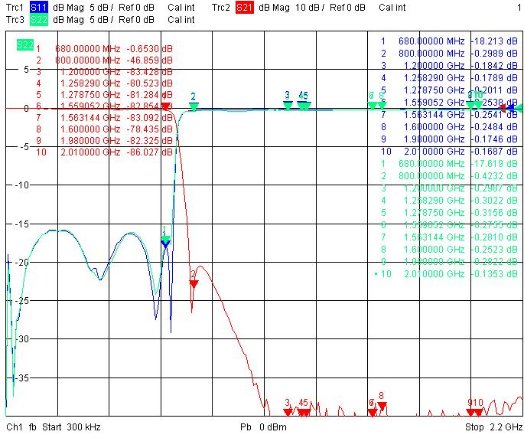

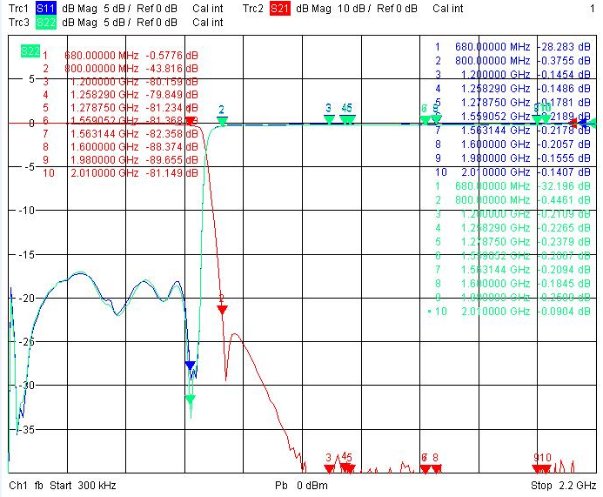

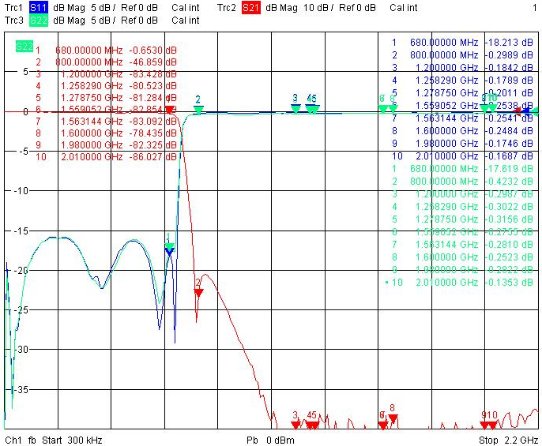

Plot Data
