LL50-C9PC

share:
Electrical Specification

Item

Spec

Unit

Center Frequency

50

MHz

Band Width

/

MHz

Insertion Loss

1

dB

Ripple in BW

0.15

dB

VSWR in BW

1.5


Attenuation

35dB@70&

dB

Interface Method

SMT


Size(W*L*H)

20.0*31.5*5.5

mm

Form

Low Pass

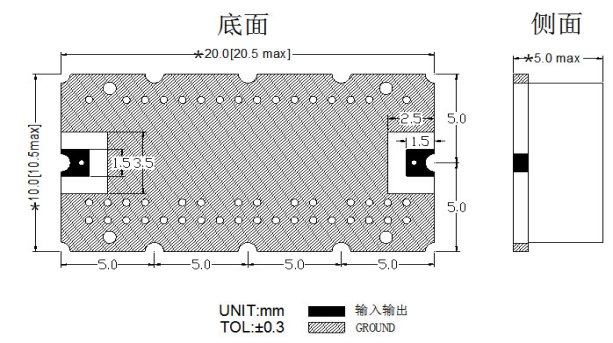

Mechanical Specification

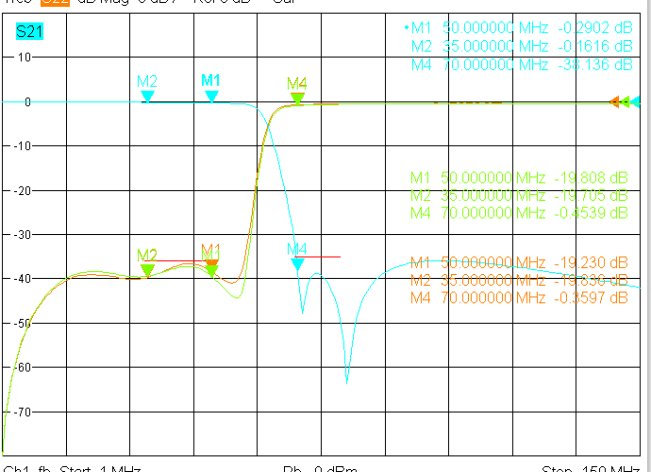

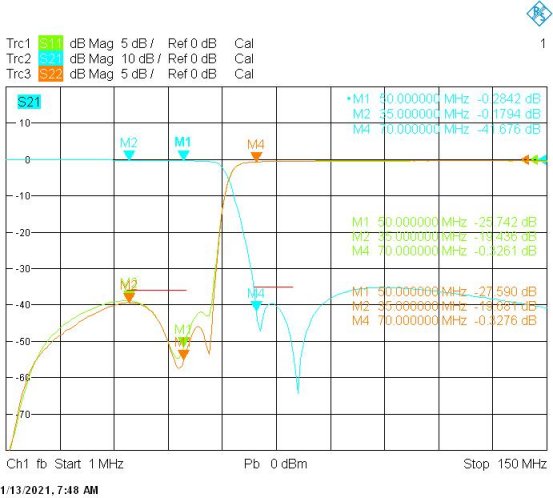

Plot Data
