MB1268-21D2CA
share:
Inquire Now
Electrical Specification
Item
Spec
Unit
Center Frequency
1268
MHz
Band Width
20.46
MHz
Insertion Loss
0.8
dB
Ripple in BW
0.5
dB
VSWR in BW
1.5
Attenuation
18dB@1610.7~3000
dB
Interface Method
SMT
Size（W*L*H)
6.2*8.7*3.2
mm
Form
Band Pass

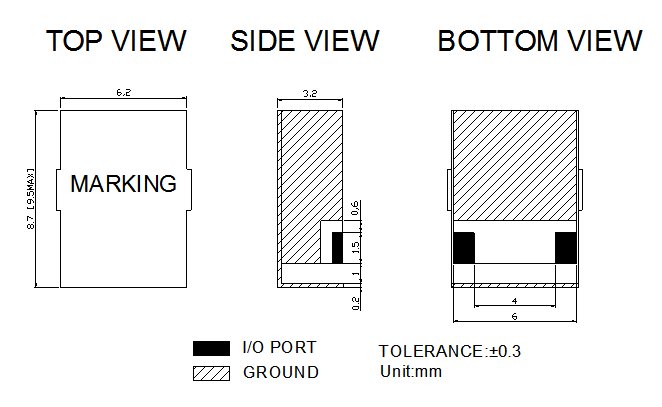

Mechanical Specification
