AB2492-17D2CA

share:
Electrical Specification


Item

Spec

Unit

Center Frequency

2491.75

MHz

Band Width

16.5

MHz

Insertion Loss

0.6

dB

Ripple in BW

0.4

dB

VSWR in BW

1.5


Attenuation

55dB@824~894

55dB@824~894

45dB@1610~1626.5

20dB@3220~3253

28dB@4830~4897.5

dB

Interface Method

SMT


Size(W*L*H)

6.6*7.6*3.5

mm

Form

Band Pass

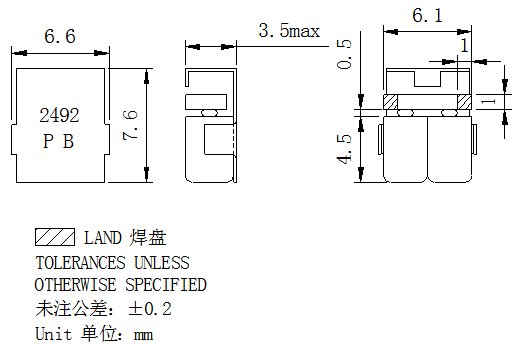

Mechanical Specification

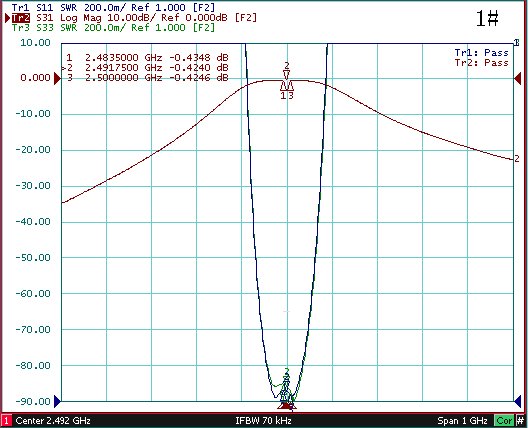

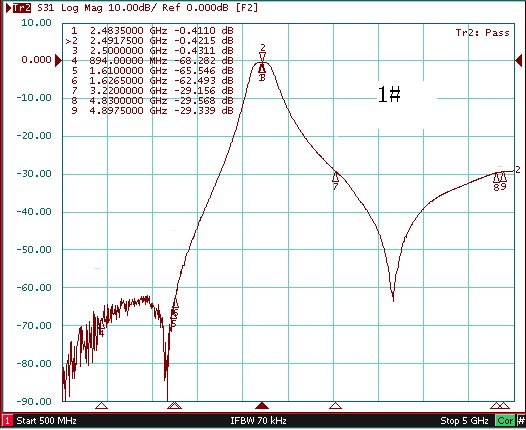

Plot Data
