MB2345-50H6PA
share:
Inquire Now
Electrical Specification
Item
Spec
Unit
Center Frequency
2345
MHz
Band Width
50
MHz
Insertion Loss
3.5
dB
Ripple in BW
1.5
dB
VSWR in BW
1.5
Attenuation
55dB@2412~2484
dB
Interface Method
SMT
Size（W*L*H)
14*13*6
mm
Form
Band Pass

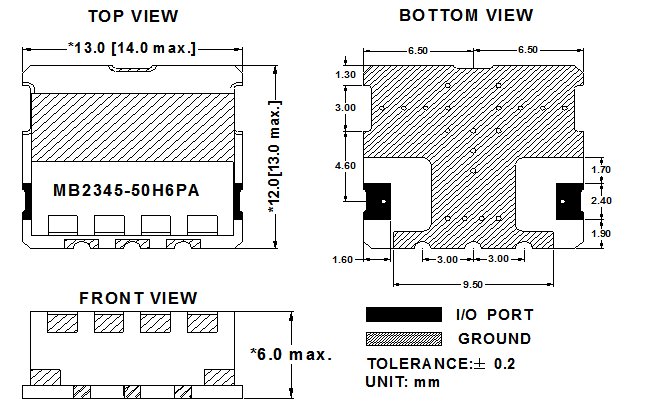

Mechanical Specification

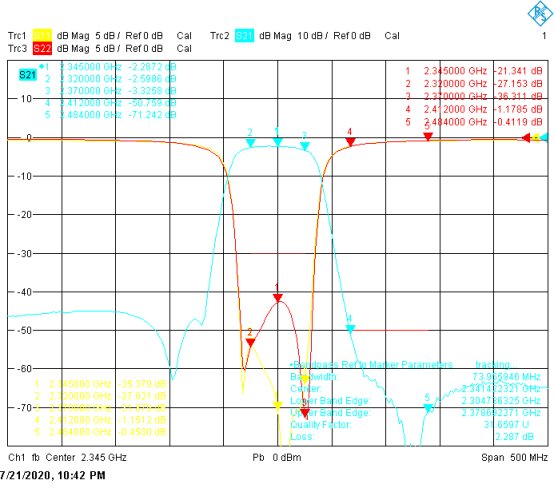

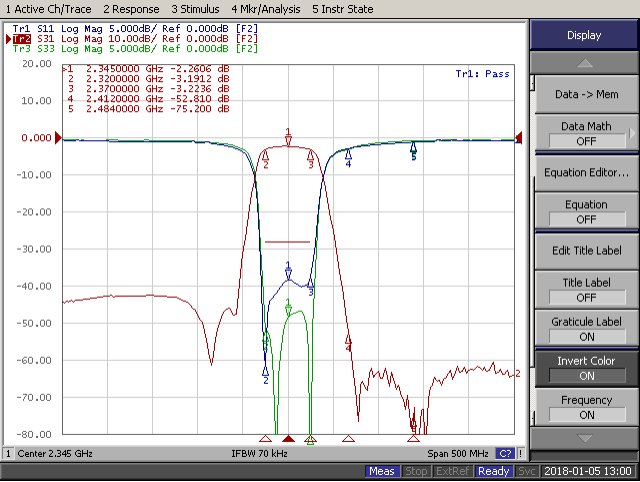

Plot Data
