MB3500-200F3MA

share:
Inquire Now
Electrical Specification
ItemSpecUnit
Center Frequency3500MHz
Band Width200MHz
Insertion Loss1dB
Ripple in BW0.5dB
VSWR in BW1.5
Attenuation

30dBc@2110~2130

 60dBc@970~1150

30dBc@4600~5000

dB
Interface MethodSMT
Size（W*L*H)8.5*4.2*3.6mm
FormBand Pass

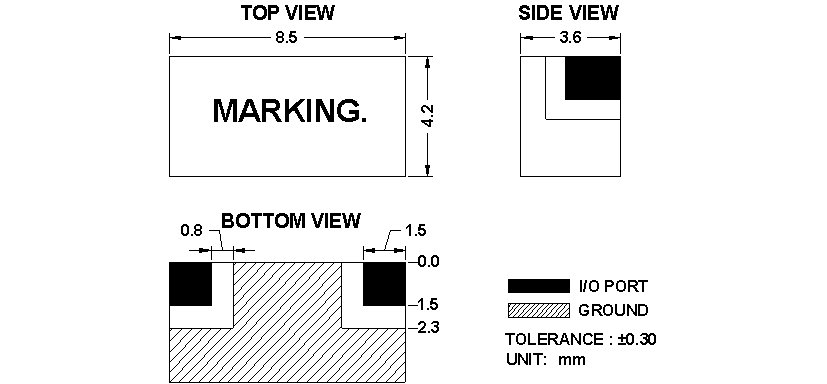

Mechanical Specification

Inquire Now
